Step-by-Step DJ Professional Stage Lighting Setup Guide

5min de leitura

In the dynamic world of DJ performances, stage lighting is as important as the music itself. A visually captivating lighting setup can transform a simple DJ set into a fully immersive experience. Among the most versatile tools are dj moving head lights, which provide sweeping motion, vibrant colors, and precise effects to energize audiences and complement the music.

Professional stage lighting isn’t just for aesthetics—it enhances audience engagement, guides energy flow, and highlights performers. Research indicates that well-coordinated lighting can increase audience retention and interaction by up to 70% in clubs and live events. This comprehensive guide will walk you through setting up a professional DJ stage lighting system, from equipment selection to DMX programming, with practical tips for beginners and pros alike.

Understanding DJ Stage Lighting Basics

Before setting up lights, it’s critical to understand the types of DJ stage lights and their specific functions.

Moving Head Lights

Provide dynamic movement, color changes, and focused beams.
Types include beam, spot, and hybrid moving head lights.
Essential for creating focal points and synchronized effects.

LED Wash Lights

Cover wide areas with uniform colored lighting.
Ideal for mood and ambiance.
Energy-efficient and capable of rapid color transitions.

Spotlights and Follow Spots

Highlight performers or key areas on stage.
Typically manually operated for precision.

Strobes & Effects Lights

Create high-energy effects during drops or transitions.
Use sparingly to avoid overwhelming the audience.

DMX Control Systems

DMX (Digital Multiplex) allows multiple lights to be controlled from a single interface.
Enables complex sequences, color changes, and movement synchronization.

Pro Tip: Combining moving head lights with LED wash lights creates depth and dynamic visual effects.

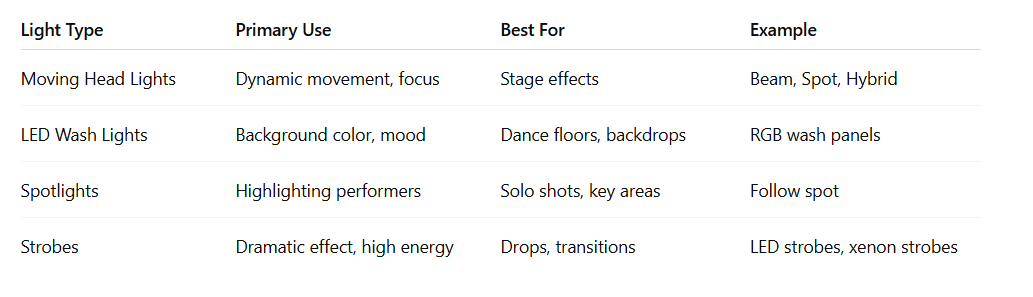

Light Types & Uses

Equipment Checklist

A professional setup requires careful selection of equipment.

Essential Lighting Equipment

Moving Head Lights: 4–8 depending on stage size.
LED Wash Lights: 2–6 for full coverage.
Spotlights/Follow Spots: At least 1–2.
Strobes & Effects: 2–4 for dynamic moments.

Support and Rigging

Stage Truss: Aluminum or steel for overhead mounting.
Clamps & Safety Cables: Secure attachment.
Fog/Haze Machines: Enhance visible beams.

Control and Power

DMX Controller: Hardware or software for programming sequences.
Power Distribution Units (PDUs): Manage multiple lights safely.
Cables: DMX for control, power cables for electricity.

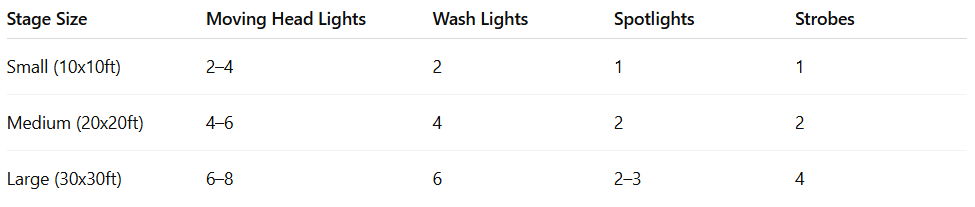

Recommended Quantities by Stage Size

Tip: Always check power load to prevent circuit overload.

Planning Your Stage Layout

Positioning Lights

Front Lights: Illuminate DJ and performers.
Back Lights: Create silhouettes and depth.
Side Lights: Enhance stage volume.
Overhead Lights: Provide full coverage and motion effects.

Stage Symmetry

Balanced placement prevents shadows and uneven illumination.

Light Angles

Moving heads must have full pan/tilt freedom.
Wash lights angled to avoid audience glare.

Integration with Audio

Plan sync points for lights to match music cues.
Use fog/haze machines where beams are most visible.

Pro Tip: Draw a scaled stage diagram before installation.

Step-by-Step Setup Process

Planning Your Layout

Map your stage, including trusses and positions for all lights.
Consider audience sightlines and camera angles.
Decide light colors and moods for different sections of the performance.

Installing Truss and Rigging Lights

Inspect trusses for weight limits.
Mount lights using clamps and safety cables.
Ensure all moving heads have clearance for rotation.

Wiring and Power Setup

Connect all lights to PDUs and verify voltage requirements.
Run DMX cables from controller to lights, following a daisy-chain or star topology.
Test all connections individually.

Programming Lights Using DMX

Assign DMX addresses for each light.
Create presets for static color, movement, and intensity.
Program sequences that match DJ beats.
Test each sequence for timing and effect visibility.

Testing & Troubleshooting

Power on and verify each light works as intended.
Check for flickering, incorrect DMX channels, or physical obstructions.
Adjust angles and brightness as necessary.

Pro Tips:

Label DMX channels and power lines.
Always have backup cables and clamps.
Document the setup for future shows.

Advanced Techniques & Tips

Color Mixing

Use RGB or RGBA lights to achieve custom colors.
Combine warm and cool colors for mood variation.

Gobo Effects

Add patterns or textures to moving head beams.
Ideal for creating thematic visuals.

Strobe & Movement Sync

Sync strobes and moving heads to music peaks.
Create dynamic “energy bursts” during high-tempo tracks.

Festival vs Club Setup

Festivals: more moving heads, wider coverage, high-intensity strobes.
Clubs: focus on DJ booth and dance floor with immersive color washes.

Example: A 20x20 ft club may use 6 moving heads, 4 wash lights, 2 spotlights, and 2 strobes for complete coverage.

Maintenance & Safety Tips

Cleaning and Care

Clean lenses and mirrors regularly to prevent dust buildup.
Check cables for wear and replace damaged ones.

Safe Storage & Transport

Use padded cases for lights and controllers.
Never stack heavy equipment on fragile lights.

Power Safety

Avoid overloading circuits.
Label PDUs and DMX lines clearly.
Keep power cords away from foot traffic to prevent accidents.

FAQs

Q1: How many moving head lights do I need for a small DJ stage?

A: 2–4 moving head lights typically suffice for a 10x10 ft stage.

Q2: Can multiple lights share one DMX controller?

A: Yes, DMX allows daisy-chaining multiple lights from a single controller.

Q3: What’s the difference between LED wash and moving head spotlights?

A: Wash lights provide broad, even illumination; moving head spotlights create focused beams and dynamic movement.

Q4: How do I program DMX sequences for music?

A: Assign channels, create presets for each light, and synchronize sequences to BPM using software or hardware controllers.

Q5: What safety measures should I follow?

A: Check truss weight limits, secure all clamps, verify power load, and avoid overhead obstructions.

Q6: Can I use fog machines with moving head lights?

A: Yes, fog enhances beam visibility and visual depth.

Q7: How often should I maintain lights?

A: Clean lenses weekly during regular use; inspect cables monthly.

Q8: Are there software options for beginners?

A: Yes, LightJockey, DMXControl, and Freestyler DMX are beginner-friendly.

Q9: How do I avoid flickering lights?

A: Ensure correct voltage, avoid long DMX cable runs without boosters, and test connections.

Q10: What’s the ideal stage layout for audience engagement?

A: Balance front, side, back, and overhead lights; consider sightlines and highlight DJ movements.

Conclusion

Professional DJ stage lighting combines technical precision, creative artistry, and careful planning. Using dj moving head lights and complementary equipment, you can transform any venue into an immersive experience.

Start planning your setup today—draw a stage diagram, choose the right equipment, and program your sequences. With careful attention to layout, programming, and maintenance, your DJ performance will stand out visually as much as musically.
