When setting up a projector, one of the most important considerations is the throw ratio - the relationship between the distance of the projector from the screen (the throw distance) and the width of the image it projects. Choosing the right throw ratio is critical for achieving a properly sized image that fits your screen or wall. This is where a projector throw ratio calculator comes in handy.
A projector throw ratio calculator helps you determine the ideal throw distance for your desired screen size, or conversely, what screen size is possible with your room dimensions and projector placement. Understanding and using a throw ratio calculator is an essential skill for anyone setting up a projector, whether at home, in the office, or in a large venue.
In this comprehensive guide, we'll dive deep into what a projector throw ratio is, why it matters, and most importantly, how to use a projector throw ratio calculator to achieve the perfect setup every time. We'll also explore related concepts like projector throw distance, the impact of lens shift and keystone correction, and how AV system integration software can streamline the process.
So whether you're a home theater enthusiast, a business professional, or an AV installer, read on to master the art of projector throw ratio calculation and take your setup skills to the next level.
What is Projector Throw Ratio?
Before we get into using a throw ratio calculator, let's define what exactly projector throw ratio means. In simple terms, throw ratio is a specification that describes how wide the image will be, relative to the distance between the projector and the screen.
Mathematically, the throw ratio is calculated by dividing the throw distance by the image width:
Throw Ratio = Throw Distance / Image Width
For example, if a projector is placed 10 feet away from the screen and produces a 5-foot wide image, the throw ratio would be 2:1 (10 divided by 5).
Projectors are broadly categorized as short throw, standard throw, and long throw based on their throw ratios:
- Short Throw: 0.4:1 or less
- Standard Throw: 1.5:1 to 2.5:1
- Long Throw: 2.5:1 or more
The throw ratio is determined by the projector's lens design. Short throw projectors use wide-angle lenses to produce large images from a short distance, while long throw projectors use narrower lenses to focus the image across a longer distance.
Understanding your projector's throw ratio is crucial for planning your setup, as it dictates how far back the projector needs to be placed to achieve your desired screen size. This is where a projector throw ratio calculator becomes an invaluable tool.
Why Projector Throw Ratio Matters
Projector throw ratio is one of the key specifications to consider when choosing a projector or planning an installation. Here's why it matters:
- Room Dimensions: The throw ratio determines whether a projector is suitable for your room size and layout. If you have limited space, you'll need a short throw projector. Conversely, if you have a large room, a long throw model may be necessary to achieve a big enough image from the available distance.
- Screen Size: The throw ratio directly impacts the projected image size at a given distance. If you have a specific screen size in mind, you'll need to choose a projector with an appropriate throw ratio and position it based on the calculated throw distance.
- Flexibility: Understanding throw ratios gives you flexibility in projector placement. For example, if you need to place the projector off-center due to room constraints, you can use lens shift and keystone correction to compensate, as long as you stay within the projector's throw ratio range.
- Cost: Projectors with shorter throw ratios tend to be more expensive due to the specialized wide-angle lenses used. Knowing the throw ratio you need helps you make an informed decision and choose the most cost-effective option for your needs.
- Image Quality: Placing the projector too close or too far from the screen can result in an image that is too small or too large, impacting overall image quality and viewer experience. Using the correct throw ratio ensures a crisp, properly sized image that makes the most of your projector's resolution.
By understanding the importance of throw ratio and using a projector throw ratio calculator, you can ensure that you choose the right projector for your space and set it up optimally for the best possible viewing experience.
How to Use a Projector Throw Ratio Calculator
Now that we understand what projector throw ratio is and why it matters, let's get into the practical steps of using a throw ratio calculator. Most calculators work similarly, requiring just a few key inputs to determine the ideal throw distance or screen size.
Here's a step-by-step guide:
- Measure your room dimensions: Start by measuring the distance from your proposed projector location to the screen wall. This is your maximum possible throw distance. Also measure the width of the wall or screen you intend to project onto.
- Determine your desired screen size: Decide on your ideal screen diagonal, width, or height based on your room size, viewing distance, and personal preferences. A general rule of thumb is that the viewing distance should be about 1.5 times the screen diagonal for comfortable viewing.
- Input your projector's throw ratio: Check your projector's specifications for its throw ratio range. If you haven't purchased a projector yet, consider what ratio would work best for your room and intended setup.

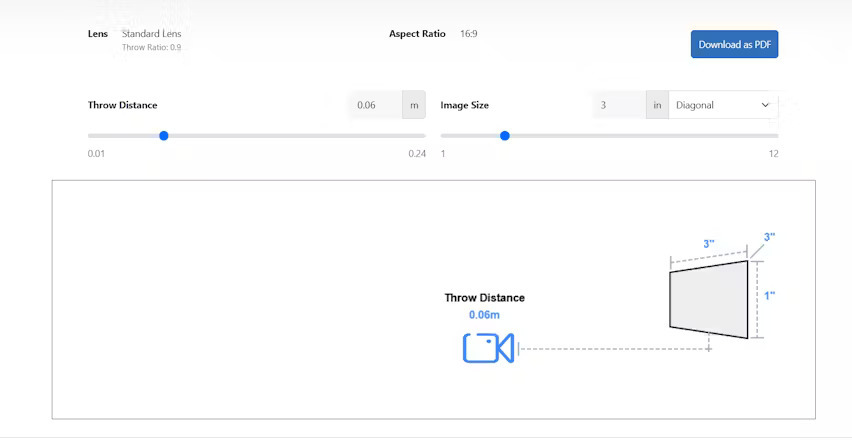

- Enter your measurements into the calculator: Input your desired screen size and your projector's throw ratio into the projector throw ratio calculator. The calculator will then provide the necessary projector throw distance.
- Fine-tune your results: If the calculated throw distance doesn't quite fit your room, you can adjust the screen size or consider a different projector with a more suitable throw ratio. Some calculators also allow you to work backwards, inputting your available throw distance to determine the maximum possible screen size.
- Account for lens shift and keystone correction: If your projector supports lens shift and keystone correction, you have some flexibility in positioning the projector slightly off-center or at an angle. However, keep in mind that excessive use of these features can degrade image quality, so it's best to stay within the recommended range.
- Double-check your calculations: Before finalizing your setup, it's a good idea to manually calculate the throw distance using the basic formula (Throw Distance = Throw Ratio x Image Width) to ensure the calculator results are accurate.
By following these steps and using a reliable projector throw ratio calculator, you can confidently plan your projector setup and achieve the optimal image size and quality for your space.
The Impact of Lens Shift and Keystone Correction
While projector throw ratio is the primary factor in determining image size and projector placement, two other features - lens shift and keystone correction - can also impact your setup. Let's take a closer look at what these features do and how they relate to throw ratio.
Lens Shift Lens shift is a feature found on many high-end projectors that allows you to physically adjust the lens vertically and/or horizontally without moving the projector itself. This is useful when the projector needs to be placed off-center due to room constraints or mounting limitations.
For example, if your projector is ceiling-mounted but not perfectly centered with the screen, you can use lens shift to move the image up, down, left, or right and align it properly with the screen. This avoids the need for digital keystone correction, which can degrade image quality.
However, it's important to note that lens shift has its limits. Each projector has a specific range of lens shift, typically expressed as a percentage of the image height or width. Exceeding this range can result in image distortion or loss of focus.
When using a projector throw ratio calculator, keep in mind that lens shift does not change the throw ratio itself. It simply allows for more flexibility in projector placement within the existing throw ratio range.
Keystone Correction Keystone correction, on the other hand, is a digital manipulation of the image that compensates for the trapezoidal distortion that occurs when the projector is not perpendicular to the screen. This is a common issue when the projector is placed off-center or at an angle to the screen.
Most modern projectors offer automatic keystone correction, which uses built-in sensors to detect the angle of the projector and adjust the image accordingly. Manual keystone correction is also available, allowing you to fine-tune the image shape using the projector's controls.
While keystone correction can be a useful tool, it should be used sparingly. Excessive keystone correction can result in image degradation, as it essentially stretches and compresses parts of the image. It's always best to position the projector as close to perpendicular as possible and use lens shift (if available) to fine-tune the alignment.
Like lens shift, keystone correction does not affect the projector's throw ratio. However, it can impact the overall image quality and should be factored into your setup considerations.
AV System Integration Software
For complex projector installations, AV system integration software can be a powerful tool to streamline the setup process and ensure optimal results. These software solutions offer advanced features and capabilities beyond a basic projector throw ratio calculator.
Projector Throw Distance One of the key features of AV system integration software is the ability to calculate and visualize projector throw distance in a more comprehensive way. These tools often include detailed CAD-based room layouts, allowing you to input your room dimensions, screen size, and projector specifications and see a visual representation of the throw distance and image size.
This can be particularly helpful when dealing with complex room shapes, multiple screens, or unconventional projector placements. The software can help you optimize the projector location and ensure that the image is properly aligned and sized for each screen.
Advanced Calculations Beyond basic throw ratio calculations, AV system integration software often includes advanced tools for calculating other important factors such as:
- Brightness: Determines the necessary projector lumens based on screen size, ambient light, and screen gain.
- Resolution: Helps select the appropriate projector resolution based on screen size and viewing distance.
- Lens Selection: Recommends the optimal lens type and zoom range based on throw distance and image size requirements.
- Power and Cabling: Calculates the required power and cabling specifications based on projector location and equipment specifications.
By taking a holistic approach to projector setup, these software tools can help ensure that every aspect of the installation is optimized for the best possible performance and reliability.
Integration with Other AV Systems Another benefit of AV system integration software is the ability to integrate the projector setup with other AV systems such as audio, control systems, and video sources. This allows for seamless operation and control of the entire AV experience from a single interface.
For example, the software might allow you to create custom presets that automatically adjust the projector settings, screen masking, and audio levels for different types of content or events. This can greatly simplify operation and ensure consistent, high-quality results every time.
Collaboration and Documentation Finally, AV system integration software often includes tools for collaboration and documentation, making it easier to work with team members and clients throughout the setup process. Features might include:
- Cloud-based file sharing and version control
- Annotated room layouts and system diagrams
- Equipment lists and specification sheets
- Installation checklists and commissioning reports
By centralizing all of the relevant information and providing a clear roadmap for the installation process, AV system integration software can help streamline communication, avoid errors, and ensure that the final result meets or exceeds expectations.
While not every projector setup requires the full capabilities of AV system integration software, it can be an invaluable tool for larger or more complex installations. By leveraging these advanced tools in conjunction with a basic projector throw ratio calculator, AV professionals can tackle even the most challenging projector setups with confidence and precision.
User Queries and Case Studies
To further illustrate the practical applications of projector throw ratio calculators and AV system integration software, let's explore some common user queries and real-world case studies.
User Query 1: How do I choose the right screen size for my room?
Answer: Choosing the right screen size depends on several factors, including your room dimensions, viewing distance, and projector throw ratio. A general rule of thumb is that the viewing distance should be about 1.5 times the screen diagonal. So, if your viewing distance is 10 feet (120 inches), a 80-inch diagonal screen would be a good choice.
To determine the appropriate screen size based on your projector's throw ratio, you can use a projector throw ratio calculator. Simply input your projector's throw ratio and your desired throw distance, and the calculator will provide the maximum screen width that can be achieved.
Keep in mind that personal preference also plays a role in screen size selection. Some viewers prefer a more immersive experience with a larger screen, while others may find a smaller screen more comfortable for long viewing sessions.
User Query 2: Can I use a short throw projector in a large room?
Answer: While short throw projectors are typically designed for smaller spaces, it is possible to use them in larger rooms with some careful planning. The key is to ensure that the projector's throw ratio and brightness are sufficient for the desired screen size and viewing conditions.
For example, if you have a short throw projector with a throw ratio of 0.5:1 and you want to achieve a 150-inch diagonal image, you would need to place the projector approximately 75 inches (6.25 feet) from the screen. This may be too close for comfortable viewing in a large room.
However, if you have a high-brightness short throw projector (3,000 lumens or more), you could potentially use a smaller screen size (e.g. 100-inch diagonal) and still achieve a bright, clear image from a relatively short distance.
When considering a short throw projector for a large room, it's important to use a projector throw ratio calculator to determine the maximum screen size that can be achieved based on the projector's specifications and your room dimensions. You may also want to consider factors such as ambient light control and screen gain to ensure optimal image quality.
Case Study 1: Conference Room Upgrade A business wanted to upgrade their conference room AV system with a new projector and screen. The room dimensions were 20 feet wide by 30 feet long, with a ceiling height of 10 feet. The client wanted a large screen for presentations and video conferencing, but also needed to maintain a clear line of sight for in-person meetings.
Using AV system integration software, the integrator was able to create a detailed room layout and test different projector and screen configurations. They ultimately recommended a ceiling-mounted long throw projector with a motorized retractable screen.
The software helped calculate the optimal screen size (120-inch diagonal) and throw distance (18 feet) based on the projector's throw ratio and the room dimensions. It also provided visualizations of the screen position and sight lines, ensuring that the screen would not obstruct views when retracted.
By leveraging the power of AV system integration software, the integrator was able to provide a comprehensive solution that met the client's needs and exceeded their expectations.
Case Study 2: Home Theater Installation A homeowner wanted to create a dedicated home theater room in their basement. The space was relatively small (12 feet wide by 15 feet long), with a low ceiling height of 7 feet. The client wanted a large, immersive screen but was concerned about the limited space.
The home theater installer used a projector throw ratio calculator to explore different options based on the room dimensions and the client's preferences. They determined that a short throw projector with a throw ratio of 0.5:1 would be the best solution, allowing for a 120-inch diagonal screen from a throw distance of just 5 feet.
To ensure optimal image quality and contrast, the installer also recommended a high-gain screen material and a complete light control solution including dimmable lights and blackout shades. They used AV system integration software to create a detailed system diagram and equipment list, ensuring that all components were compatible and properly specified.
The end result was a stunning home theater that maximized the available space and delivered a truly immersive viewing experience. By using a combination of a throw ratio calculator and AV system integration software, the installer was able to navigate the challenges of the small room and create a solution that exceeded the client's expectations.
These case studies demonstrate the real-world applications of projector throw ratio calculators and AV system integration software. Whether you're working on a small home theater or a large corporate installation, these tools can help you make informed decisions, optimize your setup, and achieve the best possible results.
Conclusion
In conclusion, understanding and utilizing a projector throw ratio calculator is essential for anyone looking to set up a projector, whether in a home theater, office, or large venue. By accurately calculating the throw distance based on your projector's throw ratio and desired screen size, you can ensure optimal image quality and viewer experience.
We've explored the key concepts and practical steps involved in using a throw ratio calculator, including measuring your room dimensions, determining your desired screen size, and accounting for factors like lens shift and keystone correction. We've also discussed the benefits of AV system integration software for more complex installations, including advanced calculations, system integration, and collaboration tools.
Through real-world case studies and user queries, we've seen how these tools can be applied in a variety of scenarios to overcome challenges and achieve outstanding results. Whether you're a DIY enthusiast or a professional AV integrator, mastering the use of a projector throw ratio calculator is a critical skill that will serve you well in any projector setup.
