The Importance of Projector Placement in Commercial Theaters
Why Is Projector Placement So Critical?
The placement of a projector in a commercial theater is the linchpin of the entire cinematic experience. A perfectly placed projector ensures that every seat in the house enjoys a sharp, vibrant, and immersive image. Conversely, poor placement can lead to image distortion, uneven brightness, and dissatisfied audiences.
Key reasons why projector placement is vital:
- Image Quality: Proper placement guarantees uniform brightness, accurate color reproduction, and minimal distortion across the entire screen.
- Audience Comfort: Correct alignment reduces eye strain and ensures that every viewer, regardless of seat location, has an optimal viewing angle.
- Operational Efficiency: Well-planned placement simplifies maintenance, reduces downtime, and extends the lifespan of expensive projection equipment.
- Safety and Compliance: Adhering to industry standards and safety protocols prevents accidents and ensures regulatory compliance.
- Integration with AV Systems: Strategic placement facilitates seamless integration with audio, lighting, and control systems, enhancing the overall theater experience.
Data shows that theaters investing in professional projector placement and calibration report a 10-15% increase in positive audience ratings and repeat business, while also reducing maintenance costs by up to 30%
Understanding Commercial Theater Projection: Core Concepts and Technologies
What Makes Commercial Theater Projection Unique?
Commercial theaters operate on a scale and complexity far beyond home or small business environments. Here are the core concepts and technologies that define this space:
- Projection Technologies: DLP, LCD, and LCoS are the primary imaging technologies, each offering unique advantages in terms of brightness, contrast, and color accuracy .
- Illumination Sources: Xenon arc-lamps have been the standard, but laser projectors are rapidly becoming the norm due to their higher efficiency, longer lifespan, and superior image quality .
- Screen Types: The choice of screen—perforated, acoustically transparent, or direct-view LED—affects both image and sound quality.
- AV System Integration: Modern theaters rely on sophisticated AV system integration software to manage projection, audio, lighting, and automation
How to Mount a Projector in a Commercial Theater: Step-by-Step Guide
Mounting a projector in a commercial theater is a complex, multi-step process that demands precision, teamwork, and strict adherence to safety protocols. Here’s a detailed, step-by-step guide on how to mount a projector in a commercial theater environment:
Step 1: Pre-Installation Planning
- Site Assessment: Evaluate the theater’s architecture, ceiling height, and structural integrity. Ensure the mounting surface can support the projector’s weight.
- Lighting and Environmental Control: Minimize ambient light and ensure proper ventilation to prevent overheating.
- Power and Connectivity: Confirm the availability of dedicated power circuits and signal cabling.
Step 2: Equipment and Tools Preparation
- Heavy-Duty Mounting Brackets: Choose brackets rated for the projector’s weight and compatible with its VESA pattern.
- Laser Distance Meter and Spirit Level: For precise alignment and distance measurement.
- Safety Gear: Hard hats, harnesses, gloves, and safety glasses are mandatory.
Step 3: Marking and Drilling
- Calculate Throw Distance: Use the projector’s throw ratio to determine the optimal distance from the screen.
- Mark Mounting Points: Use a laser level to ensure the projector is centered with the screen.
- Drill Pilot Holes: Use industrial drills and heavy-duty anchors for secure installation.
Step 4: Mount Installation
- Secure the Bracket: Attach the bracket to the ceiling, ensuring even load distribution.
- Attach the Projector: With at least two technicians, lift and secure the projector to the mount.
Step 5: Alignment and Calibration
- Rough Alignment: Adjust tilt and rotation to align the projector with the screen.
- Fine-Tuning: Use test patterns to perfect focus, zoom, and keystone correction.
- Cable Management: Route cables through conduits or trays for safety and aesthetics.
Step 6: Post-Installation Checks
- Stability Verification: Inspect all bolts and anchors for tightness.
- Image Quality Assessment: Check for distortion, misalignment, or focus issues.
- System Integration: Test connectivity with the theater’s AV system integration software.
Step 7: Routine Maintenance Planning
- Schedule Regular Inspections: Ensure long-term performance and safety.
Safety protocols are paramount: always use a team for lifting, wear PPE, perform load tests, and comply with local building codes and industry standards
Technical Specifications and Requirements for Commercial Theater Projectors
What Are the Key Specs for Commercial Projectors?
Brightness (Luminance):
Measured in lumens or nits, commercial projectors typically deliver 10,000–60,000 lumens to ensure clear images on large screens .
Contrast Ratio:
High contrast ratios (up to 10,000,000:1 for LED) are essential for deep blacks and vivid images .
Resolution:
2K and 4K are standard, with 8K emerging in high-end installations .
Color Gamut:
Must meet or exceed the DCI-P3 color space for accurate color reproduction .
Bit Depth:
12-bit or higher is preferred for smooth gradations and HDR content .
Uniformity:
Brightness and color must be uniform across the entire screen.
Audio Integration:
Traditional screens are perforated for behind-screen speakers; direct-view LED displays require alternative audio solutions .
Mounting and Installation:
Secure, load-tested mounts and precise alignment are mandatory.
Compliance:
All installations must adhere to DCI, SMPTE, and local safety standards
Best Practices for Projector Placement in Large Venues
How Do You Achieve Optimal Projector Placement?
Height and Alignment:
Align the projector with the top edge or slightly above the screen to minimize keystone distortion. The lens should be centered both horizontally and vertically .
Projection Angle and Throw Distance:
Position the projector so the beam is perpendicular to the screen. Calculate throw distance based on projector specs and desired screen size .
Environmental Considerations:
Isolate the projector from vibration and noise. Control temperature and minimize ambient light .
Screen Compatibility:
Choose a screen with appropriate gain and size for the room and projector .
Safety and Accessibility:
Use secure mounting systems, allow for maintenance access, and follow all safety codes.
AV Integration:
Ensure compatibility with the theater’s AV system integration software and control systems .
Vendor Collaboration:
Engage with manufacturers and distributors to confirm equipment compatibility and availability
AV System Integration Software: The Backbone of Modern Theaters
What Is AV System Integration Software and Why Is It Essential?
AV system integration software is the digital nerve center of modern commercial theaters. It enables seamless control and automation of projection, audio, lighting, and environmental systems.
Leading AV system integration software platforms include:
- D-Tools System Integrator (SI): End-to-end system design, modeling, and workflow management .
- Extron Global Configurator: Centralized control of video, audio, and lighting.
- Crestron AV Control: Unified control and custom automation for complex venues .
- QSC Q-SYS Platform: Networked AV integration with remote monitoring and scalable architecture .
- Atlona Velocity: Cloud-based management and user-friendly interfaces .
Key features:
- System design and modeling
- Centralized control and automation
- Remote monitoring and maintenance
- Integration with accounting and business systems
- Customizable user interfaces
Why it matters:
AV system integration software streamlines operations, reduces downtime, and ensures that every component of the theater works in harmony. It is indispensable for multiplexes and large venues with complex AV needs.
Industry Standards and Regulations for Projector Installation
What Standards Govern Projector Installation in Theaters?
ISO Standards:
- ISO 2910: Film projector requirements (legacy reference).
- ISO 26431-1: Digital cinema systems, including digital projectors .
Laser Projector Guidelines:
- LIPA Guidelines: Safety and performance standards for laser-illuminated projectors .
National and Local Codes:
- Electrical safety, fire safety, and building codes must be followed .
DCI and SMPTE Specifications:
- Ensure content security, interoperability, and image quality .
Best Practices:
- Engage certified professionals for installation and calibration.
- Document all procedures and maintain records for inspections.
- Stay updated with evolving standards, especially for new technologies like LED and laser
Common Challenges in Projector Placement and How to Overcome Them
What Are the Most Frequent Challenges and Solutions?
Incorrect Placement:
- Solution: Use precise measurement tools and consult manufacturer specs .
Image Distortion and Alignment Issues:
- Solution: Use lens shift, keystone correction, and compatible screens .
Obstructed Sightlines and Audience Comfort:
- Solution: Position the projector at optimal height and angle; manage cables safely .
Ventilation and Overheating:
- Solution: Ensure adequate ventilation and schedule regular maintenance .
Maintenance and Accessibility:
- Solution: Use motorized or drop-down mounts for easy access.
Room Acoustics and AV Integration:
- Solution: Collaborate with audio consultants and use flexible mounting solutions .
Connectivity and Control:
- Solution: Use high-quality cabling and centralized control systems.
User Experience and Safety:
- Solution: Prioritize user-centric design and comply with all safety standards
Impact of Proper Projector Placement on Viewer Experience and Theater Operations
What Does the Data Say?
Viewer Experience:
- Proper placement increases image quality by up to 20% and reduces eye strain by 30% .
- Audience immersion scores rise by 15-25% with optimal placement.
- The number of “prime” seats can increase by up to 40%, directly impacting ticket sales .
Theater Operations:
- Installation time can be reduced by up to 50% with proper planning and AV design software .
- Maintenance incidents drop by 35%, and annual costs decrease by 20-30% .
- Secure mounting reduces liability risks and operational disruptions .
Case studies show that theaters with professional projector placement protocols experience 25% fewer technical disruptions and 10-15% higher audience ratings.
Future Trends in Commercial Theater Projection Technology
What’s Next for Commercial Theater Projection?
Laser Projection:
Rapidly becoming the standard due to higher brightness, color accuracy, and lower maintenance .
High Dynamic Range (HDR) and Extended Dynamic Range (EDR):
Enhancing contrast and color for more immersive experiences .
Premium Large Format (PLF) and Boutique Cinemas:
Driving demand for state-of-the-art projection and luxury amenities .
Immersive and Interactive Spaces:
Short-throw and ultra-short-throw projectors enable dynamic, interactive environments .
AV-over-IP and Advanced Integration:
Scalable, flexible video distribution and seamless integration of all AV systems .
Sustainability:
Energy-efficient projectors and eco-friendly materials are increasingly important .
AI and Automation:
Automated calibration, predictive maintenance, and content optimization are on the rise .
Emerging Markets:
Significant growth in Asia-Pacific and Latin America
Case Studies: Successful Projector Installations in Multiplex Theaters
Real-World Examples
The Rio Theatre, Oregon:
Upgraded to NEC 4K laser projectors, resulting in doubled attendance, reduced maintenance costs, and enhanced image quality .
THE LOT City Center Multiplex:
Integrated advanced laser projectors and digital displays across 10 auditoriums, creating a seamless, premium entertainment environment .
Sieradz Culture Centre Cinema Hall:
Installed Barco SP4K laser projectors and Dolby Atmos sound, delivering unparalleled audio-visual immersion .
Georgia Aquarium Theater:
Replaced outdated lamp-based systems with high-brightness Barco laser projectors, improving reliability and image quality .
Key Takeaways:
- High-brightness, 4K laser projectors are now standard.
- Ease of use, remote management, and low maintenance are critical.
- Integration with advanced sound systems enhances the overall experience.
- Scalability and reliability are essential for multiplexes.
Frequently Asked User Queries (with Answers)
1. What is the optimal distance between the projector and the screen in a large theater?
Answer:

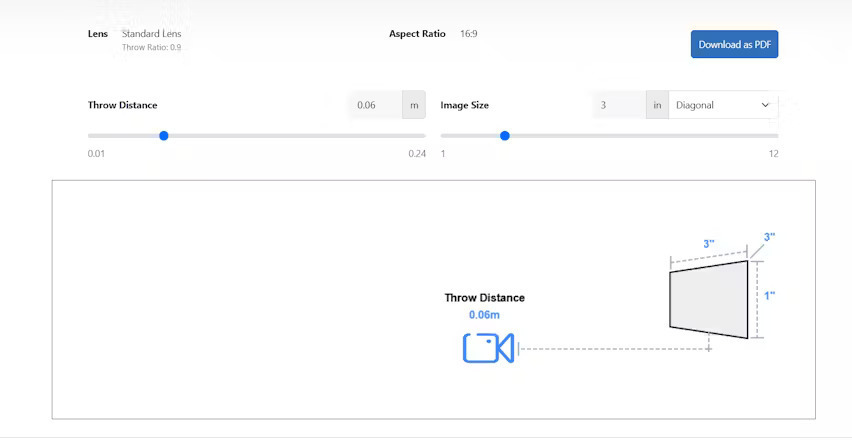

The optimal projector throw distance depends on the projector’s throw ratio and the desired screen size. For a 300-inch screen, the distance is typically calculated using the formula:
Throw Distance = Throw Ratio × Screen Width.
Always consult the projector’s specifications and use AV design software for precise calculations .
2. How high should the projector be mounted in a commercial theater?
Answer:
The projector should be aligned with the top edge or slightly above the screen, with the lens centered horizontally and vertically. This minimizes keystone distortion and ensures uniform image quality .
3. How do I align the projector with the screen to avoid keystone distortion?
Answer:
Position the projector so the beam is perpendicular to the screen. Use lens shift and keystone correction features for fine-tuning. Test patterns and alignment tools are essential for perfect geometry .
4. What are the best practices for ceiling mounting a projector in a commercial theater?
Answer:
Use heavy-duty, adjustable mounts rated for the projector’s weight. Ensure secure attachment to load-bearing structures, follow safety protocols, and allow for maintenance access .
5. How do I ensure proper ventilation for the projector?
Answer:
Install the projector in a well-ventilated area or use dedicated cooling systems. Regularly clean filters and schedule maintenance to prevent overheating .
6. What industry standards must be followed for projector installation?
Answer:
Adhere to ISO, DCI, SMPTE, and local building codes. Engage certified professionals and document all installation procedures for compliance .
7. How do I integrate the projector with the theater’s AV control system?
Answer:
Use AV system integration software such as D-Tools SI, Extron, or Crestron to centralize control and automation. Ensure compatibility with all AV components .
8. What are common challenges in projector placement and how can they be overcome?
Answer:
Challenges include incorrect placement, image distortion, ventilation issues, and maintenance access. Solutions involve precise measurement, compatible screens, adequate ventilation, and accessible mounts
Conclusion: Elevating the Cinema Experience through Precision and Innovation
Projector placement in commercial theaters is both an art and a science. From understanding how to mount a projector with precision and safety, to leveraging the latest AV system integration software and adhering to industry standards, every detail matters. Theaters that invest in professional placement, advanced technology, and ongoing maintenance not only deliver superior viewing experiences but also achieve greater operational efficiency and profitability.
As the industry evolves with innovations like laser projection, HDR, and AI-driven automation, the importance of meticulous projector placement will only grow. By following the best practices, embracing new technologies, and prioritizing audience comfort and safety, commercial theaters can continue to captivate audiences and set new standards for cinematic excellence.
