Lighting is an essential part of any stage production, whether it’s a concert, theater performance, corporate event, or DJ show. Among the most versatile and dynamic lighting tools available, moving head lights are a cornerstone in creating stunning visual effects, highlighting performers, and transforming stage environments. But one of the most common questions lighting designers, event organizers, and DJs face is: how many moving head lights do you actually need for your stage?

This comprehensive guide will answer that question in detail, breaking down the technical considerations, stage design principles, layout strategies, and real-world calculations you need to ensure your lighting setup is efficient, impactful, and visually stunning.

Introduction to Moving Head Lights

Moving head lights are a type of intelligent lighting fixture capable of producing various colors, gobo patterns, and effects while physically moving across the stage. Unlike traditional static lights, they offer unmatched versatility, allowing lighting designers to create dynamic lighting experiences.

Key features of moving head lights:

• Pan and tilt movement for directional control
• Color mixing and color wheel options
• Gobo projection for patterns and textures
• Adjustable beam angles for washes, spots, or beams
• DMX control for programming complex sequences

These features make them ideal for both small stages and large arena setups. But the number of moving heads required depends on several factors beyond just stage size.

Understanding Stage Sizes and Their Impact on Lighting

Stage size is the single most critical factor in determining how many moving head lights you need. The stage can be measured in width, depth, and height, which influences how light spreads and which areas need illumination.

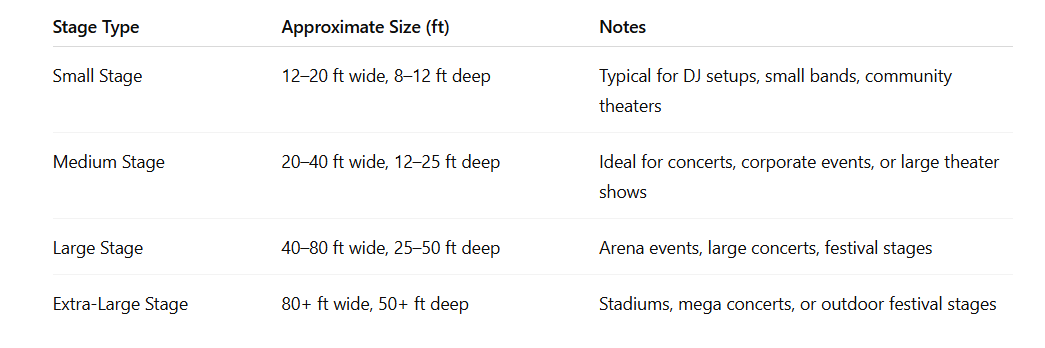

Common stage sizes:

Stage height also matters because it determines the required beam angle and the mounting height of the lights. A taller stage often requires more lights or lights with narrower beam angles to achieve proper coverage.

Types of Moving Head Lights and Their Functions

Not all moving heads are created equal. Selecting the right type of moving head light affects how many units you need.

Spot Moving Heads

• Function: Creates sharp beams, projects gobos, highlights performers.
• Coverage: Limited area per unit.
• Usage: Focused stage effects, solo performer highlighting.

Wash Moving Heads

• Function: Produces broad, even light coverage across the stage.
• Coverage: Large area per unit.
• Usage: Stage washes, color backgrounds, general illumination.

Beam Moving Heads

• Function: Creates narrow, intense beams that cut through fog or haze.
• Coverage: Focused lines rather than spread.
• Usage: Concerts, club effects, dynamic movement patterns.

Tip: A balanced stage design usually combines wash, spot, and beam moving heads to cover all functional needs.

Factors That Determine How Many Lights You Need

Several key factors influence the number of moving head lights needed beyond just stage size:

Stage Dimensions

• Larger stages require more lights to cover the depth and width.
• Taller stages need narrower beams or additional vertical positioning.

Desired Lighting Effects

• A simple wash requires fewer lights than a complex design with spot highlights, color changes, and gobos.
• High-intensity performances or events needing strong visual impact require more units.

Type of Show

• Concerts with dynamic performers need more spotlights and beam effects.
• Theater shows need precise positioning and coverage, often with fewer but strategically placed fixtures.

Lighting Design Philosophy

• Some designers prefer fewer lights with maximum coverage (minimalist approach).
• Others prefer a higher number of fixtures for flexible creative possibilities (maximalist approach).

Budget Constraints

• Moving head lights are expensive; balancing coverage with cost is crucial.
• Efficient placement can reduce the number of units needed without sacrificing effect.

Calculating Moving Head Lights for Different Stage Sizes

While there is no one-size-fits-all formula, you can estimate the required number of moving heads using stage area, beam spread, and overlap.

Step 1: Determine Stage Area

Stage Area (sq ft) = Stage Width × Stage Depth

Step 2: Define Coverage Per Moving Head

• Beam angle affects coverage area:
• 15° beam: ~1 foot of width per foot of distance
• 30° beam: ~2 feet per foot of distance
• 60° beam: ~4 feet per foot of distance

Example: For a 20 ft × 15 ft stage with 30° wash moving heads:

• Coverage width per light at 15 ft distance: 15 ft × 2 ≈ 30 ft (overlaps naturally)
• Total lights needed: 2–4 units for washes, plus 2–3 for spots or beams.

Step 3: Factor in Redundancy

• Always add 10–20% extra units for flexibility, coverage overlap, or backup.

Placement Strategies for Maximum Coverage

Placement strategy is just as important as quantity. Key placement methods:

Front of House (FOH)

• Mounted on trusses or stands in front of the stage.
• Covers performers and front stage with washes and spots.

Side Lighting

• Creates depth, separates performers from background.
• Often uses beams or spot moving heads angled diagonally.

Back Lighting

• Adds silhouettes, depth, and dramatic effects.
• Typically uses wash or beam moving heads.

Overhead / Center Truss

• Central truss positions moving heads above stage.
• Ideal for dynamic effects, moving beams, and aerial coverage.

Tip: Combining FOH, side, and overhead placements ensures full stage coverage with minimal dark spots.

Lighting Layout Examples for Common Stage Configurations

Small Stage (12–20 ft wide)

• 2–4 wash moving heads on front truss
• 1–2 spot moving heads for performers
• Optional 1–2 beam lights for effects

Medium Stage (20–40 ft wide)

• 4–6 wash moving heads front and side
• 2–4 spot lights for performers
• 2–3 beam moving heads for stage effects
• 2 overhead units on central truss

Large Stage (40–80 ft wide)

• 8–12 wash moving heads FOH and sides
• 4–6 spot moving heads for performers
• 6–8 beam moving heads for audience effects
• 4–6 overhead moving heads on multiple trusses

Extra-Large Stage (80+ ft)

• Multi-level truss system with 20+ moving heads
• Dedicated FOH, back, side, and overhead units
• Specialized beam moving heads for long-throw effects
• Advanced DMX programming for coordinated shows

Combining Moving Head Lights with Other Fixtures

Maximizing stage impact often requires combining moving heads with:

• Static LED pars: Background washes
• Follow spots: Manual spotlighting of performers
• Effect lights: Strobes, lasers, and fog for ambiance

This hybrid approach reduces the number of moving heads required while achieving a layered, professional lighting effect.

Budget Considerations and Cost Efficiency

While moving head lights are versatile, they are expensive. Efficient strategies include:

• Using wash moving heads to cover multiple performers instead of multiple spotlights
• Strategic truss placement to minimize the number of fixtures
• Utilizing multi-purpose units capable of wash, spot, and beam functionality
• Renting additional units for short-term events

Common Mistakes to Avoid in Moving Head Light Layouts

• Overcrowding: Too many fixtures can create confusion and maintenance issues.
• Underestimating coverage: Too few units lead to dark areas and uneven lighting.
• Ignoring beam angles: Wrong angles cause hot spots or wasted light.
• Neglecting truss height: Too low or too high mounting affects stage coverage.
• Poor programming: Intelligent fixtures require precise DMX control for full effect.

Advanced Techniques: Layering and Special Effects

To elevate stage lighting:

• Layering: Combine washes, spots, and beams for depth.
• Chase sequences: Use moving heads to create dynamic patterns.
• Color separation: Assign different colors to different performers or zones.
• Gobos and textures: Project patterns for dramatic backdrops.
• Audience interaction: Direct beams into the crowd for immersive experiences.

These advanced techniques may increase the number of fixtures slightly but create a professional, impactful stage show.

Conclusion

Determining how many moving head lights you need is a mix of art and science. It depends on stage size, stage height, show type, desired effects, and budget. By understanding the stage dimensions, fixture types, coverage patterns, and placement strategies, you can create a visually stunning lighting setup without overbuying or underestimating your requirements.

Key takeaways:

• Always start with accurate stage measurements.
• Identify the type of moving head lights needed: wash, spot, or beam.
• Calculate coverage areas using beam angles and distance.
• Strategically place lights across FOH, sides, back, and overhead.
• Factor in redundancy and special effects for flexibility.
• Combine moving heads with other fixtures for optimal results.

With this guide, you now have the tools to plan your moving head light layout like a professional, ensuring every performance, concert, or show looks spectacular, no matter the stage size.
