In today's security-conscious world, installing a robust nvr security camera system has become essential for protecting homes, businesses, and commercial properties. Whether you're a homeowner looking to enhance your property's security or a small business owner safeguarding your assets, understanding how to properly install an NVR (Network Video Recorder) system is crucial. This comprehensive guide will walk you through every step of the installation process, from planning and equipment selection to configuration and troubleshooting.
An nvr security camera system offers superior video quality, remote accessibility, and scalable solutions compared to traditional analog systems. With the rise of IP cameras, PoE (Power over Ethernet) technology, and advanced video surveillance capabilities, even beginners can successfully deploy professional-grade security infrastructure. This guide combines two decades of industry expertise to help you avoid common pitfalls and implement a system that delivers reliable, long-term performance.
Why NVR System Installation Matters: Understanding the Importance
The Critical Role of Professional NVR Installation
Proper installation of your nvr security camera system isn't just about mounting cameras and plugging in cables—it's about creating a comprehensive security ecosystem that protects what matters most. A professionally planned installation ensures:
Optimal Coverage: Strategic camera placement eliminates blind spots and maximizes surveillance effectiveness across your property. Poor installation can leave vulnerable areas exposed, defeating the purpose of your investment.
System Reliability: Correct wiring, network configuration, and power management prevent downtime and ensure your system operates 24/7 without interruption. A properly installed system can last 5-10 years with minimal maintenance.
Evidence Quality: High-quality installation guarantees that recorded footage meets legal standards for evidence. Poorly positioned cameras or inadequate video resolution settings can render footage useless in critical situations.
Scalability & Integration: When installed correctly with proper network infrastructure, your system can easily expand to accommodate additional cameras or integrate with smart home automation, access control systems, and av system integration software for comprehensive security management.
Cost Efficiency: While DIY installation saves initial labor costs, improper setup leads to expensive troubleshooting, equipment replacement, and potential security breaches. Investing time in proper installation pays dividends through reduced maintenance and optimal performance.
Understanding NVR Systems: Core Components and Technology
What is an NVR Security Camera System?
An nvr security camera system is a sophisticated digital video recording solution that uses IP cameras to capture, transmit, and store surveillance footage over a network. Unlike older DVR (Digital Video Recorder) systems that require analog cameras and coaxial cables, NVR systems leverage your existing network infrastructure for both data transmission and camera power through PoE technology.

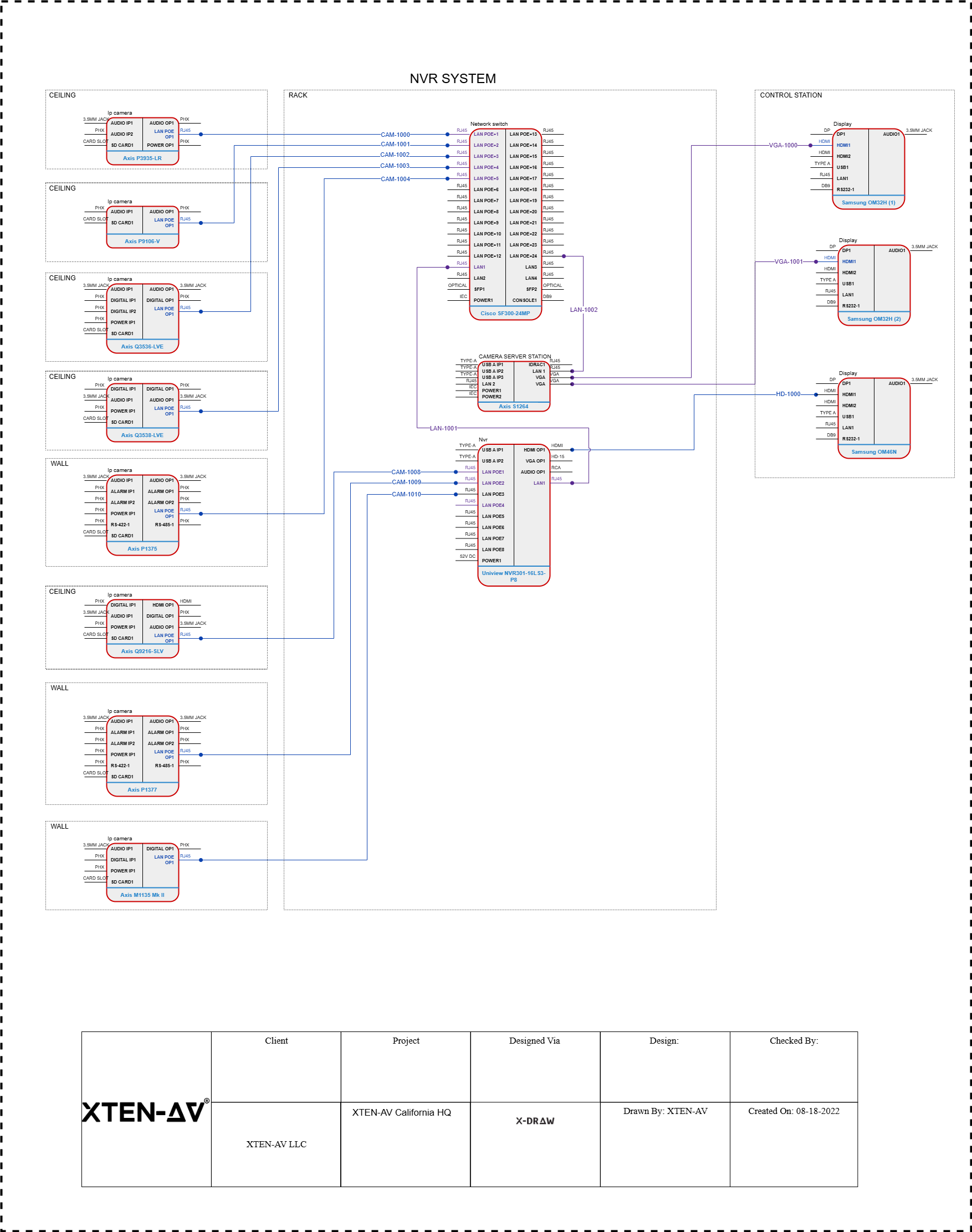

Essential Components of Your NVR Setup
Network Video Recorder (NVR): The central hub that receives, processes, and stores video streams from connected IP cameras. Modern NVRs offer features like motion detection, smart analytics, facial recognition, and multi-channel recording capabilities.
IP Cameras: High-resolution cameras that capture and digitally encode video before transmitting it over your network. Options include bullet cameras, dome cameras, PTZ (Pan-Tilt-Zoom) cameras, and wireless cameras for various applications.
PoE Switch or PoE Injectors: Devices that provide both network connectivity and electrical power to cameras through a single Ethernet cable, simplifying installation and reducing cable clutter.
Hard Drive Storage: High-capacity surveillance-grade hard drives designed for continuous recording and optimized for security applications, typically ranging from 1TB to 8TB or more.
Network Infrastructure: Routers, switches, and cables that form the backbone of your system, enabling communication between cameras, NVR, and monitoring devices.
Monitoring Devices: Computers, smartphones, tablets, or dedicated monitors used to view live feeds and playback recorded footage through video management software (VMS) or mobile applications.
Pre-Installation Planning: Setting Your System Up for Success
Site Survey and Security Assessment
Before purchasing equipment, conduct a thorough property assessment:
Identify Critical Areas: Map out high-priority zones including entry points, parking areas, cash registers, warehouses, and perimeter boundaries that require surveillance coverage.
Analyze Lighting Conditions: Note areas with poor lighting that may require infrared night vision cameras or additional security lighting installation.
Measure Distances: Calculate distances between camera positions and the NVR location to determine cable requirements and potential signal degradation concerns.
Evaluate Network Readiness: Assess your existing network bandwidth capacity, router capabilities, and available Ethernet ports to ensure infrastructure can support your planned camera count.
Determining Camera Quantity and Placement Strategy
Camera Coverage Formula: For general surveillance, position cameras to cover 20-30 feet effectively. For facial recognition, reduce distance to 10-15 feet. License plate recognition requires specialized cameras positioned 15-25 feet from vehicles.
Angle and Height Optimization: Mount cameras 8-10 feet high at a 15-30 degree downward angle for optimal field of view and facial capture while minimizing tampering risks.
Overlapping Coverage: Plan 10-20% overlap between adjacent camera views to eliminate blind spots and provide tracking continuity for moving subjects.
Calculating Network Bandwidth Requirements
Bandwidth Formula: (Camera Resolution × Frame Rate × Compression Ratio × Number of Cameras) = Required Bandwidth
For example, eight 4MP cameras at 15fps with H.265 compression require approximately 32 Mbps upload bandwidth. Always plan for 20-30% overhead to prevent network congestion.
Essential Tools and Equipment Checklist
Professional Installation Toolkit
- Power drill with masonry and wood bits
- Cable tester for network verification
- Crimping tool for RJ45 connectors
- Ladder or scaffolding for elevated installations
- Wire fish tape for running cables through walls
- Label maker for cable organization
- Voltage tester for electrical safety
- Stud finder for secure mounting
- Waterproof sealant for outdoor installations
- Cable management accessories (clips, raceways, ties)
Equipment Purchase Considerations
When selecting your nvr security camera system components:
NVR Specifications: Choose an NVR with at least 20-30% more channels than your current camera count to allow future expansion. Ensure it supports your desired camera resolution (1080p, 4MP, 4K) and includes features like remote access, cloud backup, and compatibility with av system integration software.
Camera Selection: Select cameras with appropriate IP ratings (IP66 or IP67 for outdoor use), wide dynamic range (WDR) for varied lighting conditions, and vandal-resistant housing for high-risk locations.
Storage Capacity: Calculate storage needs using this formula: (Bitrate × 3600 × 24 × Number of Days × Number of Cameras) ÷ 8,388,608 = Required Storage in TB. Plan for 30-90 days of retention depending on compliance requirements.
Step-by-Step NVR System Installation Guide
Phase 1: Physical Infrastructure Setup
Step 1: Mount the NVR Unit
Position your NVR in a climate-controlled, secure location with adequate ventilation. Mount it in a server rack, network closet, or dedicated equipment cabinet away from public access. Ensure the location has:
- Stable power supply with UPS (Uninterruptible Power Supply) backup
- Proximity to your network router or primary switch
- Adequate space for cable management and maintenance access
- Environmental controls maintaining 32-95°F operating temperature
Step 2: Install the PoE Switch
Connect your PoE switch to the NVR and your network infrastructure. For optimal performance:
- Use a managed switch for advanced VLAN configuration and network segmentation
- Position the switch centrally to minimize cable runs to cameras
- Label all ports corresponding to specific camera locations
- Connect the switch to your NVR's dedicated network port
Step 3: Run Network Cables
Cable Routing Best Practices:
Use Cat5e or Cat6 cable rated for outdoor use when running cables externally. Keep cables away from electrical lines to prevent interference. Maintain professional appearance by using cable raceways, conduit, or existing infrastructure pathways.
Outdoor Cable Installation: Drill entry holes at a downward angle to prevent water intrusion. Seal all penetrations with weatherproof sealant. Use UV-resistant cable ties and support cables every 3-4 feet to prevent sagging.
Indoor Cable Installation: Run cables through walls, drop ceilings, or attic spaces. Use wire fish tape to pull cables through difficult spaces. Maintain minimum 6-inch separation from electrical wiring.
Step 4: Mount IP Cameras
Mounting Guidelines:
- Mark drill points using camera mounting template
- Ensure mounting surface can support camera weight
- Use appropriate anchors (toggle bolts for drywall, masonry anchors for concrete/brick)
- Route cables through camera mounting base before final installation
- Adjust camera angle before fully tightening mounting hardware
- Test camera position viewing angle before proceeding
Phase 2: Network Configuration and System Setup
Step 5: Connect and Power Up the System
- Connect all IP cameras to PoE switch ports
- Connect NVR to switch and power source
- Attach monitor to NVR's HDMI or VGA output
- Power up the entire system and verify all cameras receive power (check indicator LEDs)
Step 6: Initial NVR Configuration
First-Time Setup Wizard:
- Create strong administrator credentials (minimum 12 characters with mixed case, numbers, symbols)
- Set correct date, time, and time zone
- Configure network settings (static IP recommended for stability)
- Initialize and format hard drive storage
- Set default video resolution, frame rate, and compression codec (H.265 recommended for bandwidth efficiency)
Step 7: Add Cameras to NVR
Camera Discovery and Addition:
Most modern NVR systems offer automatic camera discovery. Access the NVR's camera management interface and scan for connected cameras. Manually add cameras if auto-discovery fails by entering each camera's IP address, port number, and authentication credentials.
IP Address Management: Assign static IP addresses to all cameras within your network's IP range but outside the DHCP pool to prevent conflicts. Use sequential numbering for easy identification (e.g., 192.168.1.101, 192.168.1.102, etc.).
Step 8: Configure Recording Settings
Recording Mode Options:
- Continuous Recording: Records 24/7, consuming maximum storage
- Motion-Based Recording: Activates recording when motion detection triggers, conserving storage
- Scheduled Recording: Records during specified time periods only
- Event-Based Recording: Triggers recording based on analytics events like line crossing, intrusion detection, or facial recognition
Optimal Settings for Balance: Configure continuous recording for critical areas and motion-based recording for lower-priority zones. Set pre-recording buffer to 5-10 seconds and post-recording to 30-60 seconds to capture complete events.
Phase 3: Advanced Configuration and Integration
Step 9: Configure Remote Access
Secure Remote Access Setup:
Enable port forwarding on your router for NVR remote access (use non-standard ports for security). Configure DDNS (Dynamic DNS) service if your internet provider assigns dynamic IP addresses. Install manufacturer's mobile app and add your system using QR code scanning or manual configuration.
Enhanced Security Measures: Enable two-factor authentication (2FA), change default ports, implement SSL/TLS encryption, and regularly update firmware to patch vulnerabilities.
Step 10: Integrate with AV System Integration Software
Modern av system integration software allows centralized management of your nvr security camera system alongside other building systems including access control, intercom systems, alarm panels, and building automation.
Integration Benefits:
- Unified Interface: Manage all security and AV systems from single platform
- Automation Rules: Create scenarios like locking doors and triggering recordings when motion detected
- Enhanced Analytics: Combine data from multiple systems for comprehensive security insights
- Centralized Reporting: Generate reports across all integrated systems
- Scalability: Easily add new devices and systems as needs grow
Popular Integration Platforms: Research solutions like Milestone XProtect, Genetec Security Center, Blue Iris, or manufacturer-specific platforms that support ONVIF protocols for universal camera compatibility.
Video Management Software Configuration
Optimizing Your VMS Settings
User Access Management: Create role-based access controls with limited permissions for regular users and full access for administrators. Implement audit logging to track all system access and configuration changes.
Video Analytics Setup: Configure intelligent video analytics including:
- Motion detection zones with adjustable sensitivity
- Tampering detection for camera blocking or repositioning
- Line crossing for perimeter security
- Loitering detection for suspicious behavior
- People counting for occupancy monitoring
- License plate recognition for parking management
Alert and Notification Configuration: Set up email alerts, push notifications, and SMS messages for critical events. Configure alert schedules to prevent notification fatigue during business hours.
Troubleshooting Common Installation Issues
Network Connectivity Problems
No Camera Detection: Verify PoE switch is providing power, check cable continuity with network tester, confirm cameras and NVR are on same subnet, and validate firewall settings aren't blocking camera ports.
Intermittent Disconnections: Test for network bandwidth saturation, verify cable quality (Cat5e minimum), check for electromagnetic interference sources, and ensure PoE switch provides adequate power budget for all cameras.
Video Quality Issues
Blurry or Pixelated Footage: Adjust camera focus, increase bitrate settings, verify camera lens is clean, ensure adequate lighting conditions, and check that camera resolution matches NVR recording settings.
Night Vision Problems: Clean camera lens and IR LEDs, verify IR illuminators are functioning, adjust camera position to minimize IR reflection from nearby surfaces, and consider adding external infrared illuminators for extended range.
Maintenance and Optimization Best Practices
Regular Maintenance Schedule
Weekly Tasks: Review recorded footage quality, verify all cameras are operational, check available storage capacity, and test remote access functionality.
Monthly Tasks: Clean camera lenses and housings, verify motion detection zones, review and archive important footage, update user access lists, and test backup and recovery procedures.
Quarterly Tasks: Update firmware for NVR and cameras, review and optimize recording settings, verify physical security of equipment, inspect and tighten cable connections, and validate integration with av system integration software.
Annual Tasks: Replace aging hard drives, conduct comprehensive security audit, review and update security policies, evaluate system performance against current needs, and plan expansion or upgrade requirements.
Frequently Asked Questions: User Queries Answered
1. How many cameras can I connect to my NVR security camera system?
The number of cameras your nvr security camera system supports depends on the NVR's channel capacity, which typically ranges from 4 to 64 channels for commercial systems. However, the practical limit also depends on:
- Network bandwidth available (each 4MP camera requires 4-8 Mbps)
- Storage capacity for desired retention period
- NVR processing power for simultaneous recording and playback
- PoE switch power budget (each camera typically requires 15.4W to 30W)
Best practice: Choose an NVR with 20-30% more channels than your immediate needs to allow future expansion without system replacement.
2. What's the difference between NVR and DVR systems?
NVR systems use IP cameras that digitally encode video at the camera level and transmit over network infrastructure, offering higher resolution, easier installation via PoE, and flexible placement. DVR systems use analog cameras requiring coaxial cables and encode video at the recorder level, limiting resolution and requiring dedicated cabling infrastructure.
NVR advantages include superior video quality (up to 4K resolution), simplified cabling, advanced analytics capabilities, easier integration with av system integration software, and better scalability for large installations.
3. How much storage do I need for my security camera system?
Storage requirements depend on camera resolution, frame rate, compression codec, number of cameras, and retention period. Use this simplified calculation:
- 1080p camera at 15fps with H.265: 1-2GB per day
- 4MP camera at 15fps with H.265: 2-3GB per day
- 4K camera at 15fps with H.265: 4-6GB per day
For eight 4MP cameras recording 24/7 for 30 days: 8 cameras × 2.5GB × 30 days = 600GB minimum. Always add 20% overhead, totaling approximately 750GB or a 1TB drive.
4. Can I view my NVR security camera system remotely?
Yes! Modern nvr security camera systems offer comprehensive remote access through:
- Manufacturer mobile apps for iOS and Android
- Web browser access from any computer
- Desktop client software for advanced features
- Smart TV applications for home monitoring
Ensure you implement security best practices including strong passwords, two-factor authentication, VPN access for sensitive applications, non-default ports, and regular firmware updates to protect against unauthorized access.
5. How do I calculate network bandwidth needed for my system?
Calculate required bandwidth using this formula:
(Camera Bitrate × Number of Cameras × 1.3) = Minimum Required Bandwidth
The 1.3 multiplier accounts for network overhead. For example:
- Eight 4MP cameras at 4Mbps each
- 8 × 4Mbps × 1.3 = 41.6 Mbps required
Use H.265 compression instead of H.264 to reduce bandwidth by 40-50% without quality loss. Implement variable bitrate (VBR) recording to optimize bandwidth during low-activity periods.
6. What weatherproof rating do I need for outdoor cameras?
For outdoor installations, select cameras with minimum IP66 rating (dust-tight and water jet resistant) or IP67 rating (waterproof up to 1 meter for 30 minutes). For extreme weather environments, consider IP68-rated cameras offering complete dust and water protection.
Additionally, look for wide operating temperature range (-40°F to 140°F), IK10 vandal resistance rating for impact protection, and UV-resistant housing to prevent degradation from sun exposure.
7. How do I integrate my NVR with existing access control systems?
Integration with access control systems through av system integration software enables powerful security automation:
Integration Methods:
- ONVIF protocol support for standardized communication
- API integration for custom programming
- Third-party VMS platforms supporting multiple manufacturers
- Wiegand interface for legacy system connectivity
Automation Examples: Trigger camera recording when access card is used, display camera feed when door forced open, create video clips for each access event, and generate reports combining access and video data.
8. What's the ideal frame rate for security camera recording?
Frame rate (fps - frames per second) impacts both video quality and storage consumption:
- 15 fps: Adequate for general surveillance, reduces storage by 50% compared to 30fps
- 20-25 fps: Recommended for areas with moderate activity requiring smooth playback
- 30 fps: Ideal for high-activity areas, parking lots, and situations requiring frame-by-frame analysis
Best practice: Use 15fps for static monitoring areas, 20-25fps for general commercial spaces, and 30fps for critical areas like cash registers, entrances, and high-value asset storage.
9. Should I use wireless or wired cameras for my NVR system?
Wired cameras (PoE) are recommended for permanent installations offering:
- Reliability: No wireless interference or signal drops
- Performance: Consistent bandwidth and power delivery
- Security: Reduced vulnerability to wireless hacking
- Simplicity: Single cable provides data and power
Wireless cameras work best for:
- Temporary monitoring locations
- Structures where wiring is impractical
- Rental properties requiring easy removal
- Quick deployment scenarios
For a professional nvr security camera system, always prefer wired connections for mission-critical cameras, reserving wireless for supplementary or temporary applications.
10. How often should I update my NVR firmware?
Firmware updates address security vulnerabilities, fix bugs, and add new features. Follow this update schedule:
- Critical security patches: Install immediately upon release
- Minor updates: Review release notes and install monthly during maintenance windows
- Major version updates: Test in non-production environment first, deploy quarterly
Always backup configuration before updating, verify update from manufacturer's official website, maintain compatible camera firmware versions, and document all changes for troubleshooting.
Real-World Case Studies: NVR System Success Stories
Case Study 1: Small Retail Store Security Enhancement
Challenge: A boutique clothing store experienced recurring shoplifting incidents with inadequate coverage from their three analog cameras and DVR system.
Solution: Upgraded to an 8-channel nvr security camera system with six 4MP dome cameras covering merchandise areas, fitting rooms, and entrance. Integrated system with point-of-sale (POS) software through av system integration software to correlate transactions with video footage.
Results:
- Shoplifting incidents decreased by 73% within three months
- Successfully prosecuted five theft cases with high-resolution video evidence
- POS integration identified three instances of employee fraud totaling $2,400
- ROI achieved in 11 months through loss prevention
- Remote monitoring enabled owner to check store from vacation
Key Success Factors: Strategic camera placement covering blind spots, integration with existing systems, staff training on system capabilities, and clear signage about surveillance presence.
Case Study 2: Multi-Location Franchise Restaurant Chain
Challenge: Restaurant franchise with six locations needed centralized monitoring, consistent security standards, and integration with access control across all properties.
Solution: Deployed standardized nvr security camera systems at each location with 12-16 cameras per site. Implemented central management through enterprise video management software with av system integration software connecting surveillance, access control, and intrusion detection systems.
Results:
- Centralized monitoring from corporate office reduced security costs by $48,000 annually
- Resolved 12 customer dispute claims with video evidence, avoiding estimated $35,000 in settlements
- Identified operational inefficiencies saving average 2.3 labor hours per location daily
- Prevented three after-hours break-ins through monitored motion detection alerts
- Improved employee accountability and customer service quality
Key Success Factors: Standardized equipment across locations simplified training and troubleshooting, cloud-based central management enabled real-time monitoring, integration with existing systems provided comprehensive security, and regular training maintained staff proficiency.
Case Study 3: Residential Community Security Overhaul
Challenge: A 45-home residential community experienced vehicle break-ins and package thefts with no effective surveillance coverage.
Solution: Installed a 24-channel nvr security camera system with PTZ cameras at main entrance and pool area, bullet cameras covering parking lots and common areas, and LPR (License Plate Recognition) cameras at entry gates. Integrated with community management software for resident alerts and visitor verification.
Results:
- Zero vehicle break-ins in first 12 months post-installation
- License plate database identified and banned repeat trespassers
- Resolved 18 resident disputes using video evidence
- Package theft eliminated through delivery monitoring
- Property values increased 4.7% partly attributed to enhanced security
- Liability insurance premiums reduced 12% due to improved risk management
Key Success Factors: Comprehensive coverage of all common areas, license plate recognition for vehicle tracking, resident access to non-critical camera feeds, integration with community management software, and transparent privacy policy balancing security with resident rights.
Case Study 4: Manufacturing Facility Safety and Security
Challenge: Industrial manufacturer needed to improve workplace safety monitoring, secure inventory storage, and document compliance with safety protocols across 85,000 square foot facility.
Solution: Implemented a 32-channel nvr security camera system with explosion-proof cameras in hazardous areas, thermal cameras for fire detection, high-resolution cameras in shipping/receiving, and 360-degree cameras for warehouse coverage. Integrated with industrial control systems through specialized av system integration software.
Results:
- Documented three workplace incidents supporting worker's compensation claims
- Identified and corrected six safety violations before OSHA inspection
- Prevented estimated $125,000 inventory theft through shipping/receiving surveillance
- Reduced workplace incidents 34% through behavioral monitoring
- Video analytics detected unauthorized forklift operation, preventing potential accidents
- Achieved ROI in 14 months through risk reduction and operational improvements
Key Success Factors: Specialized cameras for industrial environments, integration with existing control systems, employee training on proper surveillance use, clear policies on footage access and retention, and commitment to using system for safety improvement rather than punitive measures.
Conclusion: Your Path to Professional Security
Installing a professional-grade nvr security camera system requires careful planning, proper execution, and ongoing maintenance, but the benefits far exceed the effort investment. By following this comprehensive guide, you've gained the knowledge to design, install, configure, and maintain a surveillance system that delivers reliable protection for years to come.
Remember these critical success factors:
Plan Thoroughly: Conduct detailed site surveys, calculate accurate bandwidth and storage requirements, and design camera placement for optimal coverage before purchasing equipment.
Choose Quality Components: Invest in reputable nvr security camera system equipment with proven reliability, comprehensive warranty support, and compatibility with industry-standard protocols like ONVIF.
Install Professionally: Follow best practices for cable management, mounting, and network configuration. Take time to position cameras correctly and verify performance before finalizing installation.
Configure Intelligently: Optimize recording settings, enable video analytics, implement security best practices, and integrate with av system integration software for comprehensive facility management.
Maintain Regularly: Establish consistent maintenance schedules, keep firmware updated, monitor system performance, and continuously optimize based on operational experience.
The security landscape continues evolving with emerging technologies like AI-powered analytics, cloud storage solutions, 4K and beyond resolutions, and enhanced integration capabilities. Your properly installed nvr security camera system provides a solid foundation that can grow and adapt as your security needs change and technology advances.
Whether protecting your home, business, or commercial property, the investment in a quality NVR system delivers peace of mind, liability protection, operational insights, and asset security. Start your installation journey today with confidence, knowing you have the comprehensive knowledge and practical guidance needed for success.
