Fire safety is paramount in any building, whether residential, commercial, or industrial. At the heart of every effective fire protection system lies the Fire Alarm Control Panel (FACP), often referred to as the brain of your fire alarm system. Installing a fire alarm control panel requires meticulous planning, technical expertise, and adherence to safety codes and standards. A comprehensive fire alarm system plan is essential before beginning any installation project, as it ensures that all components work harmoniously to protect lives and property.
This detailed guide draws from two decades of professional experience in fire alarm installation, building safety systems, and life safety code compliance. Whether you're a seasoned fire alarm technician, an electrical contractor, or a facility manager overseeing a new installation, understanding the intricacies of FACP installation is crucial. Throughout this article, we'll explore everything from initial planning and fire alarm system design to step-by-step installation procedures, integration with modern av system integration software, testing protocols, and real-world case studies that demonstrate best practices.
A well-executed fire alarm system plan not only satisfies NFPA 72 requirements and local building codes but also provides peace of mind knowing that your property has reliable early warning detection capabilities. Let's dive deep into the professional installation process that can save lives.
What is a Fire Alarm Control Panel?
A Fire Alarm Control Panel (FACP) serves as the central hub for your entire fire detection and alarm system. This sophisticated device monitors input from various fire detection devices such as smoke detectors, heat detectors, manual pull stations, and sprinkler flow switches, then triggers appropriate responses including audible alarms, visual notification devices, and communications with monitoring stations or emergency services.
Modern fire alarm control panels come equipped with advanced features including:
- Addressable device technology for pinpoint location identification
- Network connectivity for multi-building campus integration
- Voice evacuation capabilities for clear emergency instructions
- Integration interfaces for building automation systems
- Remote monitoring and diagnostics through cloud-based platforms
- Event logging and historical data storage for compliance documentation
The Critical Importance of Fire Alarm Control Panels
Life Safety and Property Protection
The fire alarm control panel represents the single most critical component in your building's life safety infrastructure. According to the National Fire Protection Association (NFPA), properties with functioning fire alarm systems experience 50-60% fewer fire-related casualties compared to those without adequate protection. The FACP ensures that:
- Early fire detection occurs within seconds of smoke or heat generation
- Automatic notification reaches building occupants through audible and visual alarms
- Emergency responders receive immediate alerts through central station monitoring
- Building systems activate automatically, including fire suppression systems, smoke control systems, and elevator recall functions
Regulatory Compliance and Legal Requirements
Installing and maintaining a properly functioning fire alarm control panel isn't just good practice—it's often legally mandated. Building codes, fire codes, and occupancy regulations require:
- NFPA 72 compliance for all fire alarm installations
- UL Listed equipment meeting stringent safety standards
- AHJ (Authority Having Jurisdiction) approval before system activation
- Annual inspections and testing protocols documented through the FACP
- As-built documentation including detailed fire alarm system plans
Insurance and Liability Considerations
Properties with professionally installed and maintained fire alarm systems typically receive:
- Reduced insurance premiums of 15-30%
- Lower liability exposure in fire-related incidents
- Enhanced property valuations due to safety infrastructure
- Faster claim processing with documented safety measures
Types of Fire Alarm Control Panels
Conventional Fire Alarm Panels
Conventional panels divide a building into zones, with multiple devices connected to each zone circuit. While more affordable, these systems provide limited diagnostic information and zone-level identification rather than specific device addresses.
Best Applications:
- Small commercial buildings under 10,000 square feet
- Residential applications with simple layouts
- Budget-conscious projects with basic requirements
Addressable Fire Alarm Control Panels
Addressable systems assign unique identifications to each device on the signaling line circuit (SLC). This advanced technology offers:
- Pinpoint device identification during alarms or troubles
- Enhanced diagnostics and preventive maintenance capabilities
- Reduced wiring costs in complex installations
- Easier system expansion and modifications
Best Applications:
- Multi-story buildings and high-rise structures
- Healthcare facilities requiring precise location data
- Educational institutions with complex layouts
- Commercial campuses with multiple buildings
Wireless Fire Alarm Systems
Wireless FACP technology utilizes radio frequency communication between devices and the control panel, offering:
- Minimal construction disruption during installation
- Flexibility in historic buildings where wiring is challenging
- Reduced installation labor costs
- Mesh network architecture for reliable communication
Networked and Integrated Systems
Modern fire alarm control panels can integrate with building management systems (BMS), access control systems, and av system integration software for comprehensive facility management. These systems enable:
- Unified monitoring dashboards across multiple safety systems
- Coordinated emergency responses activating multiple building systems
- Data analytics for predictive maintenance and system optimization
- Remote management through cloud platforms and mobile applications
Pre-Installation Planning and Fire Alarm System Plan Development
Site Assessment and Survey
Before purchasing equipment or scheduling installation, conduct a thorough site survey:
- Document building characteristics: square footage, ceiling heights, construction types, occupancy classifications
- Identify hazard areas: kitchens, mechanical rooms, storage areas requiring specialized detection
- Review existing infrastructure: electrical systems, conduit pathways, telecommunications closets
- Note architectural constraints: decorative ceilings, historic preservation requirements, aesthetic considerations
Creating a Comprehensive Fire Alarm System Plan
Your fire alarm system plan serves as the blueprint for installation success and must include:
Design Drawings:
- Floor plans showing all device locations with precise measurements
- Riser diagrams illustrating system architecture and circuit pathways
- Panel location and mounting specifications
- Conduit routing and cable schedules
- Power supply and battery backup calculations
Technical Specifications:
- Device types and model numbers for all system components
- Spacing calculations based on ceiling heights and detector sensitivity
- Circuit loading analysis ensuring compliance with manufacturer limitations
- Notification appliance calculations for audibility and visibility requirements
- Voltage drop calculations for extended circuit runs
Documentation Requirements:
- Submittal packages for AHJ review and approval
- Product data sheets for all installed equipment
- Installation instructions and manufacturer guidelines
- Testing and commissioning protocols
- Owner training materials and system operation manuals
Permitting and Code Compliance
Secure necessary approvals before beginning work:
- Building permits from local building departments
- Fire marshal review of your fire alarm system plan
- Electrical permits for power connections
- Occupancy permit amendments if required
Equipment and Material Procurement
Order all necessary components well in advance:
Core System Components:
- Fire alarm control panel sized appropriately for device count and features
- Power supplies and battery backups per calculated requirements
- Signaling line circuit modules for addressable systems
- Network communication modules for integrated systems
Detection Devices:
- Smoke detectors (photoelectric, ionization, or multi-sensor)
- Heat detectors for environments unsuitable for smoke detection
- Manual pull stations at required exit locations
- Duct smoke detectors for HVAC monitoring
Notification Appliances:
- Horns, bells, or chimes for audible notification
- Strobes and horn/strobe combinations for visual notification
- Voice evacuation speakers if required by code or design
Wiring and Infrastructure:
- Fire alarm cables (FPLR, FPLP rated as appropriate)
- Conduit and junction boxes meeting fire rating requirements
- Cable supports and fire stopping materials
- Labeling and identification materials
Essential Tools and Materials for FACP Installation
Professional Tool Kit
Electrical Testing Equipment:
- Digital multimeter for voltage and continuity testing
- Megohmmeter for insulation resistance testing
- Wire tracer for circuit identification
- Decibel meter for audibility verification
- Light meter for strobe intensity measurement
Installation Tools:
- Drill and driver set with masonry bits
- Cable pulling equipment and lubricants
- Wire strippers and crimping tools for various gauges
- Knockout punches for panel enclosure modifications
- Fish tapes and cable rods for concealed wiring
Safety Equipment:
- Personal protective equipment (PPE): hard hat, safety glasses, gloves
- Fall protection equipment for elevated work
- Lockout/tagout devices for electrical safety
- Voltage detectors and proximity testers
Documentation and Planning Materials
- Approved fire alarm system plan drawings
- Manufacturer installation manuals for all equipment
- Job-specific safety plan and site-specific hazard analysis
- Daily installation logs and progress documentation
- Device address assignment spreadsheets for addressable systems
Step-by-Step Fire Alarm Control Panel Installation Guide
Step 1: Verify Pre-Installation Conditions
Safety First:
- Ensure electrical power is disconnected at the main service panel
- Verify lockout/tagout procedures are followed
- Establish hot work permits if cutting or welding is required
- Set up fall protection for work above 6 feet
Site Preparation:
- Confirm panel location matches approved fire alarm system plan
- Verify mounting surface can support panel weight (typically 50-150 lbs)
- Ensure clearance requirements are met: typically 36" in front, 6" on sides
- Check that ambient temperature and humidity are within specifications
Step 2: Mount the Fire Alarm Control Panel
Location Requirements:
The fire alarm control panel should be installed in a supervised location accessible to fire department personnel but secure from unauthorized access. Common locations include:
- Main electrical rooms or telecommunications closets
- Security offices or building engineer stations
- Fire command centers in high-rise buildings
- Areas protected from environmental extremes and physical damage
Mounting Process:
- Mark mounting locations using panel's mounting template or direct measurement
- Drill pilot holes appropriate for wall construction (masonry anchors, wall anchors, or wood screws)
- Install mounting hardware ensuring level installation (use a spirit level)
- Mount panel backbox first, verifying secure attachment capable of supporting full loaded weight
- Install conduit entries with proper bushings and strain relief
- Verify door clearance and swing direction for maintenance access
Step 3: Install Primary and Backup Power
AC Power Connection:
Per NFPA 72 requirements, fire alarm panels must receive power from a dedicated circuit not shared with other loads:
- Install a dedicated 120VAC, 20A circuit from the main electrical panel
- Use fire-rated conduit and cabling appropriate for the environment
- Connect to panel's AC input terminals following manufacturer's wiring diagram
- Install disconnect means if required by local code (typically not required for fire alarms)
- Verify proper voltage (typically 120VAC +/-10%)
- Check ground continuity and proper neutral connection
Battery Backup Installation:
Standby batteries must provide 24 hours of standby power plus 5 minutes of alarm operation:
- Calculate battery capacity requirements based on system current draw
- Install batteries in panel's designated battery compartment (typically 12V or 24V sealed lead-acid)
- Connect battery cables observing proper polarity (red to positive, black to negative)
- Verify battery supervision circuits are functioning
- Document battery installation date for replacement tracking (typically 4-5 year life)

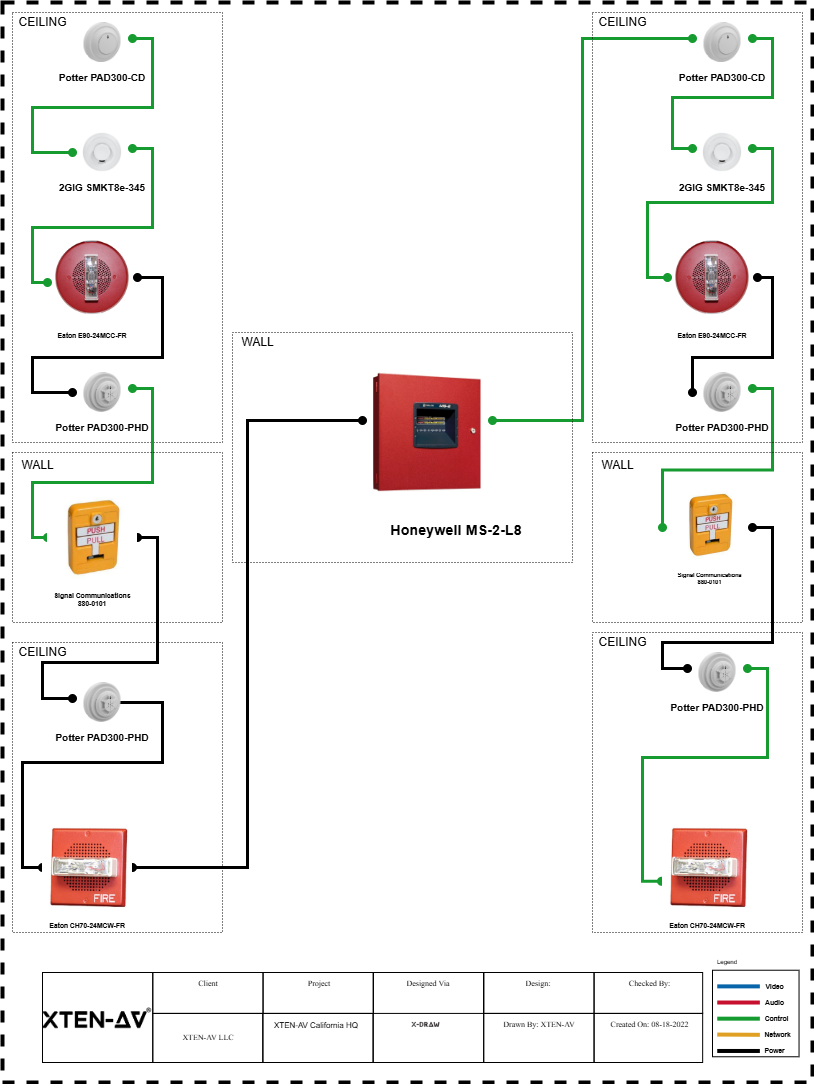

Step 4: Install Device Circuits and Wiring
Wiring Best Practices:
Following your fire alarm system plan, install all device circuits:
For Conventional Systems:
- Install initiating device circuits (IDC) connecting detectors and manual pull stations
- Install notification appliance circuits (NAC) for horns, strobes, and speakers
- Maintain circuit loading within panel specifications (typically 2-3A maximum)
- Use end-of-line resistors (EOL) per manufacturer specifications for supervision
For Addressable Systems:
- Install signaling line circuits (SLC) using Class A (redundant loop) or Class B (single run) topology
- Maintain t-tap wiring or daisy chain methods per manufacturer requirements
- Verify wire gauge is appropriate for circuit length (typically 14-18 AWG)
- Install isolator modules to prevent single short circuits from disabling entire circuits
Cable Selection and Installation:
- Use FPLR (riser) or FPLP (plenum) rated cables as appropriate
- Maintain separation from power cables per code (typically 2" minimum or barrier-separated)
- Support cables every 4.5 feet and within 12 inches of boxes
- Label circuits clearly at both ends and at junction points
- Maintain color coding consistency throughout installation
Step 5: Install Detection Devices
Smoke Detector Installation:
Following spacing requirements from your fire alarm system plan:
- Mount detector bases to electrical boxes or directly to ceiling/wall surfaces
- Verify proper spacing: typically 30-foot maximum between detectors on smooth ceilings
- Adjust spacing for ceiling height, air velocity, and obstructions
- Install detectors 4-12 inches from walls when wall-mounted
- Avoid locations within 3 feet of air supply diffusers or return grilles
- Keep detectors at least 36 inches from ceiling-mounted fans
Heat Detector Placement:
Heat detectors should be installed in areas where smoke detectors are inappropriate:
- Kitchens and cooking areas (use rate-of-rise or high-temperature fixed detectors)
- Mechanical rooms with high dust or steam
- Attics and unconditioned spaces
- Parking garages (coordinate with carbon monoxide detection requirements)
Manual Pull Station Locations:
Install manual pull stations:
- At all exits leaving the building or fire area
- Along natural paths of egress
- At 44-48 inches above finished floor
- Within 5 feet of exit door opening
- With unobstructed access and clear identification
Step 6: Install Notification Appliances
Audible Notification:
Horns, bells, and speakers must provide:
- Minimum 75 dBA sound level throughout occupied areas (15 dBA above ambient or 5 dBA above maximum 60-second duration)
- 90 dBA minimum in sleeping areas
- Distinct sound pattern from other building alarms (typically temporal 3 pattern: ON-OFF-ON-OFF-ON-OFF)
Visual Notification:
Strobe lights must provide:
- 15 cd minimum in most areas
- 110 cd in corridors and large spaces
- 177 cd in areas with high ambient light
- Synchronized flashing when multiple strobes are visible simultaneously
- Maximum 100 feet spacing in corridors, 50 feet in rooms
Step 7: Device Programming and Addressing
For Addressable Systems:
Using the fire alarm control panel's programming interface or laptop programming software:
- Assign unique addresses to each device (typically 001-999)
- Label devices with assigned addresses for future identification
- Create device map matching physical locations to addresses
- Program custom device labels for easy identification on panel display
- Set device sensitivity levels for smoke detectors if adjustable
- Configure zones and alarm groups per your fire alarm system plan
System Configuration:
- Set time and date for event logging
- Configure network settings if panel has network capability
- Program cause-and-effect logic for complex response sequences
- Set delay times if applicable (pre-alarm verification, etc.)
- Configure notification appliance patterns and sequences
- Enable integration points with BMS, HVAC, access control, and av system integration software
Step 8: Integration with AV System Integration Software
Modern fire alarm control panels can integrate with av system integration software and building automation platforms for enhanced facility management:
Integration Benefits:
- Unified emergency response coordinating fire alarms with mass notification systems
- Video verification triggering security camera recordings in alarm areas
- Door release integration with access control systems for life safety egress
- Elevator recall and fire service mode activation
- HVAC control for smoke management and building pressurization
- Digital signage override displaying emergency evacuation information
Integration Methods:
- Relay outputs from FACP triggering external systems
- Network protocols including BACnet, Modbus, or proprietary APIs
- Contact closure monitoring of FACP status points
- RS-232 or RS-485 serial communication
- Ethernet/IP connectivity for modern networked panels
Programming Integration Logic:
When configuring av system integration software connections:
- Program fire alarm outputs to activate appropriate AV system responses
- Test failsafe operation ensuring fire alarm remains functional if integration fails
- Document control sequences in system as-built documentation
- Verify response times meet life safety requirements
- Ensure priority hierarchy where fire alarm always supersedes other systems
Step 9: Initial System Testing and Verification
Pre-Functional Tests:
Before notifying authorities or activating the system:
- Verify AC power supply voltage and current draw
- Test battery backup capacity and charger operation
- Check all circuit wiring for shorts, grounds, and proper supervision
- Test each detection device individually using appropriate stimulus (smoke, heat, manual activation)
- Verify notification appliance operation (sound level, light intensity, synchronization)
- Test all interface connections to external systems
- Review event history and system programming
Functional Testing:
Conduct comprehensive functional tests per NFPA 72 Chapter 14:
- Alarm activation tests: Verify proper device operation and panel response
- Supervisory signal tests: Test sprinkler valve tamper switches, low pressure warnings
- Trouble signal tests: Simulate ground faults, circuit opens, device removal
- Audibility tests: Measure sound levels throughout protected areas
- Visibility tests: Measure strobe intensities and verify coverage
- Secondary power tests: Disconnect AC power and verify battery operation
- Communication tests: Verify signal transmission to monitoring station
Step 10: Final Commissioning and Documentation
Authority Having Jurisdiction (AHJ) Inspection:
Schedule final inspection with the fire marshal or building official:
- Provide as-built fire alarm system plan drawings reflecting actual installation
- Demonstrate system functionality during witnessed testing
- Provide product approvals and UL listings for all equipment
- Present battery capacity calculations and voltage drop calculations
- Show device address logs and programming documentation
Owner Training:
Provide comprehensive training to building maintenance staff and facility managers:
- Normal system operation and display interpretation
- Alarm acknowledgement and system reset procedures
- Trouble condition resolution
- Basic troubleshooting techniques
- Testing and inspection requirements
- Documentation and record keeping responsibilities
Final Documentation Package:
Deliver complete record drawings and operational documentation:
- As-built drawings showing all device locations, wiring routes, and panel locations
- Device address directory listing all addresses and locations
- Programming reports from FACP showing all system settings
- Test reports documenting acceptance testing results
- Product manuals and warranty information
- Maintenance schedules and inspection checklists
- Contact information for service providers and manufacturers
System Integration with Modern AV System Integration Software
The convergence of fire safety systems and building technology platforms has created opportunities for enhanced facility management through av system integration software. Modern fire alarm control panels can seamlessly integrate with comprehensive building management systems.
Integration Architecture
Communication Protocols:
Contemporary FACP integration utilizes various protocols:
- BACnet MS/TP or BACnet/IP for standardized building automation
- LonWorks for older building systems
- Modbus TCP/RTU for industrial applications
- OPC UA for enterprise-level integration
- RESTful APIs for cloud-based platforms
Practical Integration Applications
Emergency Mass Notification:
When integrated with av system integration software, fire alarm activation can trigger:
- PA system announcements with pre-recorded evacuation messages
- Digital signage displays showing evacuation routes and instructions
- Desktop alerts to computer systems
- SMS and email notifications to facilities personnel
- Mobile app push notifications to occupants
Access Control Coordination:
Fire alarm system integration with access control provides:
- Automatic door unlocking for egress paths during fire alarm
- Elevator recall to designated floors
- Magnetic door holder release closing fire doors
- Stairwell re-entry access during evacuation
Video Management Integration:
Linking fire alarm events with video management systems (VMS):
- Automatic camera recording in alarm zones
- Pop-up video displays showing alarm locations
- Video verification before dispatching emergency response
- Post-incident investigation with synchronized alarm and video logs
Implementation Considerations
When integrating fire alarm control panels with av system integration software:
Maintain Life Safety Priority:
- Fire alarm functionality must never depend on integration systems
- Stand-alone operation required if integration fails
- Fail-safe design ensuring fire alarm operates independently
Compliance Requirements:
- Integration must not conflict with NFPA 72 requirements
- Listed equipment may have specific integration limitations
- AHJ approval required for non-traditional integrations
Documentation:
- As-built integration diagrams showing all interconnections
- Programming logic documentation for cause-and-effect relationships
- Testing protocols verifying integrated system operation
- Maintenance procedures for integrated components
Testing, Maintenance, and Troubleshooting
Acceptance Testing
Initial Acceptance Tests per NFPA 72 verify complete system functionality:
Device-Level Testing:
- Activate each smoke detector using aerosol smoke or magnetic test tools
- Test each manual pull station for proper operation
- Verify each notification appliance produces required output
- Test each supervisory device for proper signal generation
System-Level Testing:
- Alarm verification sequences with multiple devices
- Secondary power transfer and capacity verification
- Communication paths to monitoring stations
- Interface operations with connected building systems
Documentation:
- Record test results on approved forms
- Note device addresses and locations tested
- Document any deficiencies and correction methods
- Obtain AHJ signature on acceptance forms
Ongoing Inspection and Maintenance
NFPA 72 requires regular inspection, testing, and maintenance:
Weekly:
- Visual inspection of panel indicators and displays
- Verify AC power and battery supervision indicators
- Check for trouble signals or abnormal conditions
Monthly:
- Test panel functions including alarm, supervisory, and trouble
- Verify indicator lamp operation
- Review event history for unusual patterns
Quarterly:
- Sensitivity testing of smoke detectors (if equipped with addressable technology)
- Inspection of notification appliances for physical damage
Annually:
- Test every device on the system using actual stimulus
- Verify audibility and visibility throughout protected areas
- Battery load testing and capacity verification
- Alarm transmission to monitoring station
- Integration testing with all connected systems
Five-Year Testing:
- Comprehensive sensitivity testing of smoke detectors
- Battery replacement (typically 4-5 year life)
- Detailed system evaluation and performance analysis
Common Troubleshooting Issues
Trouble Signals:
Understanding fire alarm control panel trouble indications:
Ground Fault Troubles:
- Caused by damaged cable insulation or moisture intrusion
- Isolate by disconnecting circuits individually
- Use megohmmeter to identify problem areas
- Repair or replace affected wiring
Open Circuit Troubles:
- Broken wire connections or failed end-of-line devices
- Check terminal block connections at panel
- Verify device connections and EOL resistor presence
- Repair broken conductors or replace devices
Device Troubles:
- Detector sensitivity drift requiring cleaning or replacement
- Failed notification appliances not responding to activation
- Addressable device communication failures
- Clean or replace affected devices per manufacturer instructions
Battery Troubles:
- Low battery voltage indicating need for replacement
- Charger failure preventing proper battery charging
- Battery load test failure showing insufficient capacity
- Replace batteries or troubleshoot charging circuits
Communication Troubles:
- Loss of communication with monitoring station
- Network connectivity issues in integrated systems
- Telephone line or cellular communicator failures
- Check communication wiring, network settings, and service provider connections
Real-World Case Studies
Case Study 1: Healthcare Facility Upgrade
Project Overview: A 250,000 square-foot hospital required a complete fire alarm system upgrade to replace a 25-year-old conventional system with modern addressable technology.
Challenges:
- 24/7 operations prohibited complete shutdowns
- Patient care areas required continuous fire protection during construction
- Complex integration with nurse call, medical gas alarms, and building automation
- Historic portions of facility complicated wiring installation
Solution: Developed comprehensive fire alarm system plan with phased installation:
- Installed new addressable FACP alongside existing panel
- Migrated building zones individually during low-occupancy periods
- Used wireless devices in historic areas to minimize construction impact
- Integrated with av system integration software for unified facility monitoring
- Coordinated with infection control for proper construction barriers
Results:
- Zero patient care interruptions during 8-month installation
- Enhanced life safety with pinpoint device addressing
- Reduced maintenance costs by 40% through predictive diagnostics
- Achieved full Joint Commission compliance
- Integrated system improved emergency response coordination
Key Lessons:
- Thorough fire alarm system plan enabled successful phased approach
- Regular coordination meetings with facility stakeholders prevented conflicts
- Training programs ensured staff could operate new technology
- Comprehensive testing protocols verified system reliability
Case Study 2: High-Rise Office Building
Project Overview: New construction 35-story office tower requiring sophisticated fire alarm system with voice evacuation and comprehensive integration.
Unique Requirements:
- Phased evacuation strategy for orderly high-rise evacuation
- Firefighter communication system for incident command
- Smoke control integration managing building pressurization
- Elevator recall for 12 passenger and 2 freight elevators
- Stairwell pressurization verification and monitoring
System Design: Created detailed fire alarm system plan incorporating:
- Distributed architecture with floor-level remote annunciator panels
- Voice evacuation speakers in all tenant and common areas
- Two-way communication between fire command center and remote locations
- Graphic annunciator displaying building floor plan with alarm locations
- Integration with security, HVAC, elevators, and lighting through av system integration software
Installation Highlights:
- Used Building Information Modeling (BIM) for 3D coordination with other trades
- Prefabricated riser assemblies to accelerate installation schedule
- Installed fiber optic backbone for high-speed data communication
- Created detailed sequence of operations for complex cause-and-effect programming
Commissioning:
- 100% device testing verified proper installation
- Smoke bomb testing in elevator lobbies verified proper smoke control
- Full building evacuation drill tested voice evacuation effectiveness
- Integration testing verified proper response of all connected systems
Outcome:
- System achieved LEED Gold certification credit for enhanced commissioning
- Received Building Officials Award for innovative life safety design
- Tenant satisfaction scores highlighted confidence in safety systems
- Predictive maintenance through addressable technology reduced service calls by 60%
Case Study 3: Educational Campus Retrofit
Project Overview: University campus with 45 buildings ranging from 1950s-era dormitories to modern research facilities required unified fire alarm system with campus-wide monitoring.
Scope:
- Replace outdated systems in 28 buildings
- Network all systems for centralized monitoring
- Implement mass notification capabilities
- Integrate with existing emergency communication infrastructure
- Meet Higher Education Compliance standards
Challenges:
- Diverse building types with varying code requirements
- Student housing required ADA-compliant notification
- Limited construction windows during summer break
- Budget constraints requiring phased multi-year implementation
Strategic Approach:
Year 1: Developed master fire alarm system plan for entire campus
- Conducted code compliance review of all 45 buildings
- Prioritized buildings based on code deficiencies and safety risk
- Selected standardized equipment platform for long-term maintainability
- Designed fiber optic network infrastructure for campus connectivity
Years 2-4: Phased building renovations
- Installed networked fire alarm control panels in priority buildings
- Added ADA strobes and bed-shaker notification in dormitories
- Integrated campus-wide emergency notification through av system integration software
- Created central monitoring station in campus police department
Results:
- Achieved 100% code compliance across campus
- Response times to fire incidents improved by 45%
- False alarm rates decreased by 70% with addressable technology
- Emergency communication enhanced with integrated mass notification
- System provided foundation for smart campus initiatives
Lessons Learned:
- Standardization simplified training and reduced spare parts inventory
- Master planning enabled efficient resource allocation across multiple years
- Student engagement during fire drills improved evacuation compliance
- Network infrastructure investment provided benefits beyond fire alarm
Frequently Asked Questions (User Queries with Expert Answers)
1. How long does it take to install a fire alarm control panel?
Expert Answer: Installation timelines vary significantly based on system complexity, building size, and existing conditions. A basic fire alarm control panel replacement in a small commercial building might take 2-3 days for an experienced technician. However, comprehensive new installations following a detailed fire alarm system plan require more extensive timelines:
- Small buildings (under 10,000 sq ft): 3-5 days
- Medium commercial (10,000-50,000 sq ft): 1-3 weeks
- Large facilities (50,000-200,000 sq ft): 3-8 weeks
- High-rise buildings or complex installations: 2-6 months
These timelines include rough-in wiring, device installation, panel programming, testing, and commissioning. Occupied buildings where work must occur during non-business hours may take 50-75% longer than new construction with unrestricted access.
2. Can I install a fire alarm control panel myself, or do I need a licensed professional?
Expert Answer: While technically skilled individuals could physically install a fire alarm control panel, most jurisdictions require licensed fire alarm contractors to perform this work. Here's why professional installation is essential:
Legal Requirements:
- Most states require fire alarm contractor licensing for system installation
- Electrical permits typically require licensed electricians
- Insurance liability coverage requires proper licensing and certification
- Code compliance verification needs professional understanding of NFPA 72
Technical Expertise:
- Proper fire alarm system plan development requires training and experience
- Device spacing calculations prevent coverage gaps
- Circuit loading analysis ensures system reliability
- Integration programming with av system integration software needs specialized knowledge
Liability Concerns:
- Improperly installed systems may fail during emergencies
- Personal liability for injuries or deaths due to system failures
- Property damage from ineffective fire protection
- Insurance claims may be denied if unlicensed installation is discovered
Recommendation: Always hire a licensed, experienced fire alarm contractor with proven expertise, proper insurance, and knowledge of local codes. The investment in professional installation provides peace of mind that your life safety system will function when needed most.
3. What are the ongoing costs of maintaining a fire alarm control panel?
Expert Answer: Budgeting for fire alarm system maintenance is crucial for long-term reliability. Typical annual costs include:
Inspection and Testing Services:
- Annual inspection by licensed technician: $500-$2,000 depending on system size
- Quarterly inspections (if required): $200-$500 per visit
- Semi-annual testing per NFPA 72: $800-$3,000 for comprehensive testing
- Monitoring services (if applicable): $30-$100 monthly
Consumables and Parts:
- Battery replacement every 4-5 years: $100-$1,000 depending on capacity
- Smoke detector cleaning supplies: $50-$200 annually
- Repair parts for failed devices: $200-$1,000 annually (average)
- End-of-line resistors, test switches, and minor components: $100-$300
Professional Services:
- Troubleshooting service calls: $150-$300 per call
- Device replacement labor: $100-$200 per device
- System programming updates: $200-$800
- Integration maintenance with av system integration software: $500-$2,000 annually
Total Annual Costs: Small systems: $1,500-$3,000 Medium systems: $3,000-$8,000 Large complex systems: $8,000-$25,000+
Cost-Saving Strategies:
- Service contracts often provide 10-20% savings over time-and-materials
- Addressable systems reduce false alarm fines and service calls
- Preventive maintenance prevents expensive emergency repairs
- Staff training enables basic troubleshooting reducing contractor calls
4. How do I know what size fire alarm control panel I need?
Expert Answer: Selecting appropriately sized fire alarm control panels requires careful analysis as part of your fire alarm system plan. Consider these key factors:
Device Count:
- Calculate total initiating devices (smoke detectors, heat detectors, pull stations, flow switches)
- Count required notification appliances (horns, strobes, speakers)
- Add 20-30% spare capacity for future expansion
Circuit Capacity:
- Conventional panels: Determine number of zones needed
- Addressable systems: Each SLC typically supports 99-250 devices
- Consider notification circuit capacity (usually 2-3 amps per circuit)
Power Requirements:
- Calculate total current draw during alarm conditions
- Verify power supply capacity and battery backup sizing
- Ensure standby capacity for 24 hours plus 5-15 minutes alarm
Feature Requirements:
- Network connectivity for campus or multi-building sites
- Voice evacuation capabilities if required by code or occupancy
- Integration interfaces for building automation and av system integration software
- Graphic annunciators or remote displays for large facilities
Example Sizing:
Small retail store (5,000 sq ft):
- Devices: 15 smoke detectors, 2 pull stations, 12 notification appliances
- Panel: 4-zone conventional or small addressable (up to 50 devices)
- Power: 2.5A power supply, 7Ah batteries
Medium office building (50,000 sq ft):
- Devices: 120 smoke detectors, 18 pull stations, 80 notification appliances
- Panel: Addressable with 2 SLC loops (up to 400 devices capacity)
- Power: 6A power supply, 40Ah batteries
- Features: Network capability, integration with building systems
Professional Recommendation: Engage a qualified fire alarm design professional to analyze your building characteristics, occupancy type, and code requirements. Proper fire alarm system plan development ensures optimal panel selection balancing current needs with future flexibility while maintaining budget constraints.
5. What's the difference between conventional and addressable fire alarm systems?
Expert Answer: Understanding the differences between conventional and addressable fire alarm systems is crucial when developing your fire alarm system plan:
Conventional Systems:
Operation:
- Devices connected to zone circuits (typically 10-20 devices per zone)
- Panel identifies which zone has activated, not specific device
- Uses analog signaling between devices and panel
- End-of-line resistors provide circuit supervision
Advantages:
- Lower initial cost for small installations
- Simpler installation for basic buildings
- Easier troubleshooting for traditional technicians
- Readily available replacement parts
Limitations:
- Zone-level identification only (not specific device location)
- Limited diagnostic information
- Higher wiring costs in complex buildings (more home-run circuits)
- False alarm troubleshooting more difficult
Best Applications:
- Buildings under 10,000 square feet
- Simple building layouts
- Budget-constrained projects
- Replacement of existing conventional systems
Addressable Systems:
Operation:
- Each device has unique digital address (001-999 typically)
- Microprocessor-based communication between panel and devices
- Panel identifies specific device activated with exact location
- Continuous monitoring of device status and health
Advantages:
- Pinpoint device identification reducing response times
- Advanced diagnostics enabling predictive maintenance
- Lower wiring costs in large buildings (multiple devices per circuit)
- Easier troubleshooting with specific device identification
- Enhanced features like sensitivity adjustment, maintenance alerts
- Better integration with av system integration software and building systems
Limitations:
- Higher equipment costs (15-25% more than conventional)
- More complex programming requiring trained technicians
- Specialized tools for commissioning and maintenance
- Proprietary protocols limiting equipment mixing
Best Applications:
- Buildings over 10,000 square feet
- Multi-story buildings
- Healthcare facilities requiring fast response
- High-value facilities needing sophisticated protection
- Buildings with complex layouts or difficult access
Cost Comparison:
10,000 sq ft building example:
- Conventional: $8,000-$12,000 installed
- Addressable: $10,000-$15,000 installed
50,000 sq ft building example:
- Conventional: $35,000-$50,000 installed
- Addressable: $32,000-$45,000 installed (lower due to wiring savings)
Recommendation: For new installations, addressable technology offers superior long-term value through reduced maintenance, faster troubleshooting, and better life safety outcomes. The initial cost premium is recovered through operational savings within 3-5 years for most facilities.
6. How often should fire alarm control panels be replaced?
Expert Answer: Fire alarm control panel lifespan and replacement timing depends on multiple factors:
Typical Lifespan:
- Average service life: 15-20 years with proper maintenance
- Manufacturer support: 10-15 years for parts and technical support
- Technology obsolescence: 10-15 years before significantly outdated
Replacement Triggers:
Age-Related Factors:
- 15+ years old: Begin planning replacement within 3-5 years
- 20+ years old: Replacement strongly recommended
- 25+ years old: Immediate replacement for liability and reliability
Technology Factors:
- Conventional systems in complex buildings: Upgrade to addressable
- Non-networked panels when campus integration needed
- Lack of integration with modern av system integration software
- No remote diagnostics capability increasing maintenance costs
Reliability Indicators:
- Frequent false alarms suggesting system instability
- Intermittent troubles indicating hardware degradation
- Parts unavailability from manufacturer discontinuation
- Repeated repairs exceeding 50% of replacement cost
Code Compliance:
- New code requirements not supported by existing panel
- Retrofit requirements mandating system upgrades
- Occupancy changes requiring enhanced features
Strategic Replacement Approach:
Evaluation Process:
- Professional assessment by licensed fire alarm contractor
- Cost-benefit analysis comparing repair vs. replacement
- Code compliance review identifying mandatory upgrades
- Long-term planning coordinating with building renovation schedules
Phased Replacement: For large facilities:
- Replace oldest panels first in multi-panel buildings
- Standardize equipment for long-term maintainability
- Install network infrastructure enabling future expansion
- Maintain compatibility during transition period
Financial Planning:
Replacement Costs:
- Small systems: $5,000-$15,000
- Medium systems: $15,000-$75,000
- Large complex systems: $75,000-$500,000+
Budget Considerations:
- Establish capital reserve for planned replacement
- Consider financing options for large replacements
- Factor operational savings from newer technology
- Include training costs for new system operation
Proactive Approach Benefits:
- Planned replacements cost 30-40% less than emergency replacements
- Negotiated pricing through competitive bidding
- Minimized disruption with scheduled installation
- Enhanced reliability preventing emergency failures
- Improved insurance ratings with modern systems
Recommendation: Develop a long-term fire alarm system plan that anticipates replacement needs. For systems 15+ years old, begin planning process to ensure smooth transition before failure forces emergency replacement.
7. Can fire alarm systems integrate with smart building technology?
Expert Answer: Modern fire alarm control panels offer extensive integration capabilities with smart building technologies and av system integration software, creating sophisticated life safety ecosystems:
Integration Technologies:
Communication Protocols:
- BACnet: Industry-standard building automation protocol
- LonWorks: Legacy building system integration
- Modbus: Industrial equipment communication
- SNMP: Network management and monitoring
- RESTful APIs: Cloud-based integration platforms
- MQTT: IoT device communication
Physical Interfaces:
- Relay outputs: Hardwired control of external equipment
- Contact inputs: Monitoring external device status
- Ethernet connectivity: Network-based communication
- RS-232/RS-485: Serial data communication
- Fiber optic: High-speed campus backbone
Smart Building Integration Applications:
Building Management Systems (BMS):
- HVAC control: Smoke management, shutdown sequences
- Elevator control: Recall and fire service mode
- Door controls: Unlocking egress paths, magnetic door holders
- Lighting control: Emergency lighting activation, path illumination
- Energy management: Non-essential system shutdown during emergencies
Security Systems:
- Access control: Automatic door unlocking during evacuation
- Video surveillance: Camera positioning on alarm zones
- Intrusion detection: Coordinated system responses
- Visitor management: Emergency accountability tracking
Communication Systems:
- Mass notification: Campus-wide emergency alerts via av system integration software
- PA systems: Voice evacuation coordination
- Digital signage: Emergency information display
- Messaging systems: Email, SMS, mobile app notifications
Data Analytics and AI: Modern smart building platforms analyze fire alarm system data:
Predictive Maintenance:
- Device health monitoring: Identifying detectors needing attention before failure
- Trend analysis: Detecting environmental changes affecting performance
- Maintenance optimization: Scheduling interventions during planned downtime
- Cost reduction: Preventing emergency service calls
False Alarm Reduction:
- Pattern recognition: Identifying recurring false alarm sources
- Sensitivity adjustment: Automatic detector optimization
- Verification delays: Confirming alarms before notification
- Environmental monitoring: Detecting conditions causing nuisance alarms
Emergency Response Optimization:
- Evacuation modeling: Analyzing building occupancy and egress patterns
- Resource allocation: Positioning emergency equipment optimally
- Response time analysis: Measuring and improving emergency procedures
- Drill effectiveness: Evaluating evacuation performance
Implementation Considerations:
Maintain Life Safety Independence:
- Fire alarm must operate independently if integration fails
- Failsafe design ensuring fire protection during network outages
- Listed equipment limitations on integration methods
- Code compliance requirements for interconnected systems
Cybersecurity:
- Network segmentation: Isolating life safety systems from general IT networks
- Encryption: Securing data transmission
- Authentication: Controlling access to fire alarm programming
- Vulnerability management: Regular security updates
Documentation and Testing:
- Detailed integration diagrams in fire alarm system plan
- Sequence of operations documenting cause-and-effect logic
- Regular testing of integrated functions
- Training programs for operators managing integrated systems
Future Trends:
Cloud-Based Fire Alarm Management:
- Remote monitoring and diagnostics
- Predictive analytics using machine learning
- Automatic software updates
- Multi-site management dashboards
IoT Integration:
- Wireless sensors expanding coverage
- Edge computing for local decision-making
- 5G connectivity for reliable communication
- Digital twins for virtual facility modeling
Recommendation: When developing your fire alarm system plan, consider integration requirements early in design. Select fire alarm control panels with robust integration capabilities and partner with providers experienced in smart building integration and av system integration software implementation. Ensure integration enhances rather than compromises life safety functionality.
8. What are the most common mistakes when installing fire alarm control panels?
Expert Answer: Drawing from two decades of professional experience, here are the most frequent fire alarm control panel installation errors and how to avoid them:
Planning and Design Mistakes:
Inadequate Fire Alarm System Plan:
- Error: Rushing installation without comprehensive planning
- Consequence: Device coverage gaps, code violations, expensive rework
- Prevention: Develop detailed fire alarm system plan with professional design review before purchasing equipment
Undersized Equipment:
- Error: Selecting panels without adequate expansion capacity
- Consequence: Premature replacement when building needs expand
- Prevention: Include 20-30% spare capacity in all calculations
Poor Panel Location Selection:
- Error: Installing panels in unsuitable locations (exposed to weather, public access, inadequate clearance)
- Consequence: Code violations, equipment damage, accessibility issues
- Prevention: Follow NFPA 72 location requirements and coordinate with AHJ
Installation Mistakes:
Power Supply Errors:
- Error: Sharing circuits with other equipment, inadequate voltage, improper grounding
- Consequence: System unreliability, code violations, fire hazards
- Prevention: Install dedicated circuits, verify voltage at panel under load, ensure proper grounding
Wiring Violations:
- Error: Using non-fire-rated cables, inadequate wire gauge, improper cable routing
- Consequence: System failure during fire, code violations, failed inspection
- Prevention: Use FPLR or FPLP rated cables, follow wire gauge tables, maintain proper separation from power wiring
Device Spacing Errors:
- Error: Incorrect smoke detector spacing, ignoring ceiling height adjustments
- Consequence: Coverage gaps creating unprotected areas
- Prevention: Follow manufacturer spacing tables, adjust for ceiling height and air velocity, document calculations in fire alarm system plan
Programming and Configuration Mistakes:
Incomplete Programming:
- Error: Not configuring all system features, using default settings
- Consequence: Improper system response, missing functionality
- Prevention: Create comprehensive programming checklist, verify all settings match design intent
Poor Address Management:
- Error: Disorganized device addressing, inadequate documentation
- Consequence: Difficult troubleshooting, slow emergency response
- Prevention: Use logical addressing scheme, maintain accurate device address directories, label all devices clearly
Integration Configuration Errors:
- Error: Improper programming of interfaces with av system integration software or building systems
- Consequence: Failed integrated responses during emergencies
- Prevention: Test all integrated functions, verify failsafe operation, document sequence of operations
Testing and Documentation Mistakes:
Inadequate Testing:
- Error: Skipping device-by-device testing, not testing all system functions
- Consequence: Undiscovered installation defects, system reliability issues
- Prevention: Follow NFPA 72 testing requirements, test every device and circuit
Poor Documentation:
- Error: Not updating as-built drawings, missing programming documentation
- Consequence: Difficult maintenance, expensive troubleshooting, code violations
- Prevention: Maintain accurate records throughout installation, provide complete documentation package to owner
Skipped Owner Training:
- Error: Not training facility staff on system operation
- Consequence: Improper responses to alarms/troubles, increased false alarms
- Prevention: Provide comprehensive training sessions, leave detailed operation manuals
Compliance Mistakes:
Code Violation:
- Error: Not following NFPA 72, IBC, or local amendments
- Consequence: Failed inspections, legal liability, unsafe conditions
- Prevention: Stay current on code requirements, coordinate with AHJ throughout project
Missing Permits:
- Error: Beginning work without proper permits and approvals
- Consequence: Stop-work orders, fines, removal of installed work
- Prevention: Secure all required permits before starting installation, schedule inspections at appropriate milestones
Maintenance Phase Mistakes:
Neglected Maintenance:
- Error: Skipping required inspections and testing
- Consequence: System degradation, code violations, potential life safety failures
- Prevention: Establish maintenance schedule, document all testing, address deficiencies promptly
Unqualified Service:
- Error: Using non-licensed technicians for service and repairs
- Consequence: Improper repairs, voided warranties, liability issues
- Prevention: Use only licensed, qualified fire alarm professionals for all service work
Prevention Strategy: The key to avoiding these mistakes is thorough planning with a comprehensive fire alarm system plan, using qualified professionals throughout installation, following manufacturer instructions and code requirements precisely, conducting complete testing, and maintaining detailed documentation. Never compromise on quality or compliance to save time or money—the stakes are literally life and death.
Conclusion
Installing a Fire Alarm Control Panel represents one of the most critical investments in building safety and occupant protection. This comprehensive guide has explored the essential elements of successful FACP installation, from initial planning and fire alarm system plan development through equipment selection, installation procedures, integration with av system integration software, testing protocols, and ongoing maintenance requirements.
Key Takeaways:
Professional Planning is Essential: A detailed fire alarm system plan serves as the foundation for successful installation, ensuring code compliance, adequate coverage, and optimal system performance. Never underestimate the value of thorough pre-installation planning.
Quality Equipment Matters: Selecting appropriately sized, UL Listed fire alarm control panels from reputable manufacturers ensures reliable operation and long-term maintainability. Addressable technology offers significant advantages for most modern installations.
Installation Excellence: Proper installation techniques following manufacturer instructions and NFPA 72 requirements are non-negotiable. Use fire-rated cables, maintain proper device spacing, ensure adequate power supply, and verify every connection.
Integration Opportunities: Modern fire alarm control panels offer extensive integration capabilities with building automation systems, access control, video surveillance, and av system integration software, creating comprehensive smart building solutions while maintaining life safety priorities.
Testing and Commissioning: Comprehensive testing per NFPA 72 Chapter 14 verifies that every component functions properly. Never shortcut testing procedures—lives depend on system reliability during emergencies.
Ongoing Maintenance: Regular inspection, testing, and maintenance per NFPA 72 requirements ensure continued system reliability. Establish maintenance schedules and document all activities for compliance and liability protection.
Professional Expertise: While this guide provides comprehensive information, fire alarm system installation requires licensed professionals with specialized training, experience, and knowledge. Engage qualified fire alarm contractors for all installation, programming, and service work.
Future-Proofing: Design systems with expansion capacity and integration capabilities to accommodate future building modifications and technology advancements. A well-planned fire alarm system can serve a building reliably for 15-20 years.
The importance of properly installed and maintained fire alarm control panels cannot be overstated. These systems provide the critical early warning that enables safe evacuation, rapid emergency response, and effective fire suppression—functions that save lives daily. By following the comprehensive guidelines outlined in this article, implementing thoughtful fire alarm system plans, and maintaining systems diligently, you create robust life safety infrastructure that protects building occupants and property for decades.
Whether you're overseeing a new installation, upgrading an aging system, or maintaining existing equipment, approach fire alarm control panel work with the seriousness it deserves. Partner with experienced professionals, invest in quality equipment, follow established standards, and never compromise on safety. Your diligence today may save lives tomorrow.
