Cold spark machine installation has become an essential element in modern concerts, transforming ordinary stage performances into spectacular visual experiences. Unlike traditional pyrotechnics that involve flames, smoke, and high temperatures, cold spark machines produce visually striking spark fountains that are safe for indoor and outdoor venues. Concert organizers, DJs, and stage technicians increasingly rely on these machines to create memorable moments while ensuring safety compliance.
The purpose of this guide is to provide a step-by-step approach to setting up cold spark machines for concerts, covering everything from equipment selection, safety regulations, live operation, maintenance, and troubleshooting. By the end of this guide, you will understand how to safely and efficiently install cold spark machines, synchronize them with your concert's lighting and music, and ensure a breathtaking yet safe performance for your audience.
Cold spark machines are widely used across EDM festivals, rock concerts, award shows, and theatrical performances, thanks to their low-risk, high-impact effect. Studies indicate that cold spark fountains can reach heights of 3–5 meters indoors while producing zero flame, making them ideal for venues with strict fire safety regulations.
Understanding Cold Spark Machines

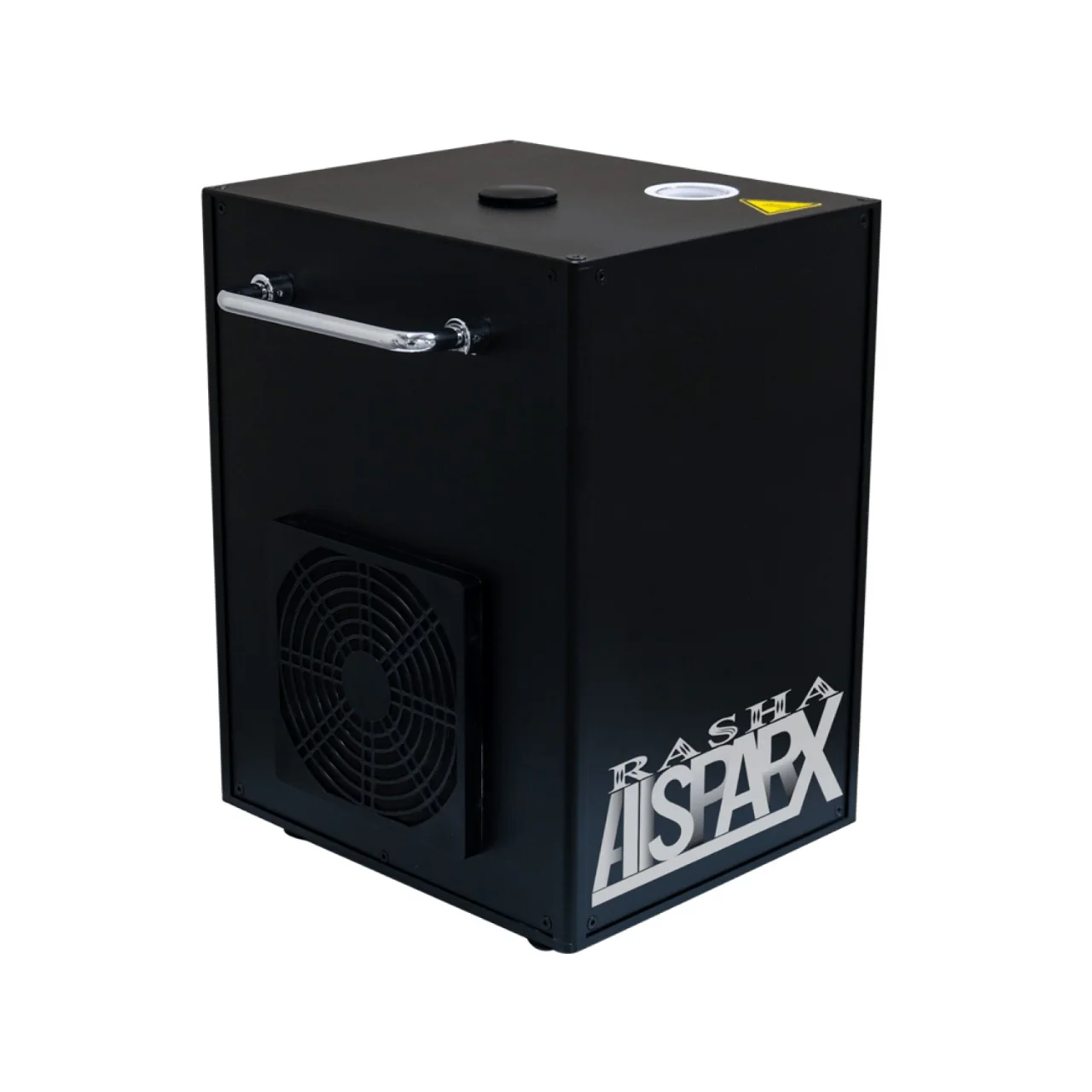

Cold spark machines, also referred to as spark fountains, are advanced pyrotechnic devices that produce showers of metallic sparks through a controlled ignition process. They offer a safe alternative to traditional pyrotechnics, which carry higher fire and smoke hazards.
Components of a Cold Spark Machine
- Ignition System: Responsible for triggering the spark reaction safely. Modern machines use electric ignition, reducing the risk of accidental fire.
- Fountain Tubes: Metal tubes filled with spark-producing compounds. They are the visible source of sparks and determine height and intensity.
- Control Interface: Machines can be operated manually or remotely using DMX controllers, wireless triggers, or pre-programmed software.
- Power Supply: Cold spark machines require a stable power source, typically 110–240V AC or 12–24V DC for portable models.
Types of Cold Spark Machines for Concerts
- Portable Machines: Lightweight, easy to set up, suitable for smaller concerts and indoor use.
- Professional DMX-Controlled Machines: High-end machines integrated with stage lighting and music control systems, ideal for large-scale festivals.
Applications in Concerts
Cold spark machines enhance the concert experience by:
- Creating dramatic entrances for performers
- Highlighting climactic moments in songs
- Adding visual elements to dance or electronic music performances
For example, an EDM festival in Las Vegas used 12 DMX-controlled cold spark fountains synchronized to the beat of the main DJ set, creating a visually immersive experience for 50,000 attendees.
Safety Guidelines and Regulations
Safety is paramount when using pyrotechnics in concerts, even with cold spark machines. These devices are low-risk, but improper use can result in injuries or property damage.
Legal Compliance
- Permits: Verify local fire codes and pyrotechnic permits. Most indoor venues require prior approval from local authorities.
- Insurance: Ensure that the event insurance covers pyrotechnics, even if cold spark machines are classified as low-risk.
- Fire Safety Standards: Follow OSHA or NFPA standards for indoor pyrotechnics, including minimum audience distances.
Operational Safety Guidelines
- Maintain a minimum 2-meter distance between the machine and performers or audience.
- Use fireproof barriers and protective mats to shield the stage and equipment.
- Operators should wear personal protective equipment (PPE): gloves, goggles, and fire-retardant clothing.
- Never leave machines unattended once powered.
Statistics & Examples
Research indicates that the adoption of cold spark fountains over traditional flame pyrotechnics has reduced indoor pyrotechnic-related accidents by over 70% in concert settings.
FAQs:
- How far should the audience be from a cold spark machine? 2 meters minimum.
- Do I need a permit for indoor pyrotechnics? Yes, always check local fire codes.
Planning Your Concert Spark Show
Stage Layout Considerations
- Measure ceiling height, ensuring sparks do not reach lights or hanging structures.
- Position machines at stage edges or near performer entrances for maximum effect.
- Calculate audience sightlines to ensure sparks are visible but safe.
Synchronization with Music and Lighting
- Use DMX controllers or pre-programmed software to sync sparks with beats, drops, and lighting cues.
- For large shows, consider multiple machines to create wave effects or cascades.
Event Example
During a rock concert in London, three spark fountains were positioned at the back of the stage, synchronized with the guitar solo, generating an immersive effect that amplified audience excitement.
Diagram Tip: Include a stage map showing placement and coverage angles for multiple machines.
Step-by-Step Setup Process
This section is the core of the guide and will detail the full setup process for a concert.
Pre-Setup Checklist
- Inspect machines for damage or corrosion.
- Verify power supply compatibility.
- Check DMX or remote triggers for functionality.
- Set up fireproof mats or barriers.
- Confirm that PPE is available for operators.
Step 1: Selecting Placement
- Ensure minimum safety distance from performers and audience.
- Avoid proximity to flammable materials, curtains, or hanging stage lights.
Step 2: Installing Machines
- Secure machines using clamps or stands.
- Angle machines slightly to prevent sparks from escaping intended zones.
Step 3: Connecting Power and Control
- Connect to stable power supply and test continuity.
- Link machines to DMX controllers or wireless triggers for remote operation.
Step 4: Conduct Dry Run / Testing
- Run a single spark test with machines unpowered or using a dummy load.
- Verify ignition sequence and DMX trigger responses.
- Adjust angle, timing, or placement as needed.
Step 5: Safety Check Before Live Show
- Confirm that fire extinguishers are accessible.
- Ensure all operators and performers are aware of spark machine locations.
- Reconfirm audience distances and protective barriers.
Troubleshooting Common Issues
- Machine not firing: Check ignition connections and power supply.
- Uneven spark output: Inspect fountain tubes for blockage.
- DMX control failure: Reset controller and verify channel mapping.
Example Tip: Include labeled images showing machine placement and wiring setup.
Operation During Concerts
Live operation of cold spark machines requires coordination with the show production team.
Control Methods
- Manual Trigger: Operator initiates spark manually during key moments.
- Wireless Trigger: Allows flexibility in large venues.
- DMX Integration: Synchronizes sparks with lighting and music for precise effects.
Performance Coordination
- Use cue sheets or digital show control software.
- Communicate with performers and lighting technicians to avoid accidents.
- Have backup operators ready for emergencies.
Real-World Example:
An EDM DJ show in Amsterdam used 15 DMX-controlled cold spark machines, programmed to fire on music drops. The precise timing created a spectacular synchronized visual that received international media coverage.
Maintenance & Troubleshooting
To ensure reliability and longevity of your machines:
Routine Maintenance
- Clean fountain tubes after each use to prevent residue buildup.
- Check ignition systems for wear or corrosion.
- Inspect wiring and connectors for safety and integrity.
Common Troubleshooting Tips
- Machine fails to ignite: Replace ignition fuse or check control signal.
- Sparks too low or uneven: Clean or replace fountain compound.
- Control synchronization issues: Verify DMX channels or wireless frequency interference.
FAQ:
- How often should a cold spark machine be serviced? Every 10–15 shows or as recommended by the manufacturer.
- Can cold spark machines be reused? Yes, with proper maintenance.
Environmental & Audience Considerations
Cold spark machines are environmentally safer than traditional pyrotechnics but still require some precautions:
- Residue: Metallic particles are minimal but clean the stage after each show.
- Smoke: Negligible, but ventilation may be required in enclosed spaces.
- Noise: Machines are relatively quiet; avoid placement near sensitive equipment.
Tip: Use floor mats to catch spark residue and protect stage surfaces.
Conclusion
Cold spark machines provide spectacular visual effects for concerts while maintaining high safety standards. By following proper installation, safety protocols, and synchronization techniques, event organizers can deliver memorable experiences without compromising performer or audience safety. Proper cold spark machine installation, regular maintenance, and coordination with the production team are key to a flawless show.
FAQs
- What is the maximum height a cold spark machine can reach indoors?Typically 3–5 meters, depending on the machine model.
- How many cold spark machines are recommended for a concert stage?Depends on stage size and effect; usually 2–15 machines for medium to large concerts.
- Are cold sparks safe around performers?Yes, if minimum safety distances and protective measures are observed.
- Can cold spark machines be synchronized with music and lighting?Absolutely, using DMX controllers or wireless triggers.
- How to troubleshoot a cold spark machine that doesn’t ignite?Check power supply, ignition connections, fuse, and control interface.
